Introduction

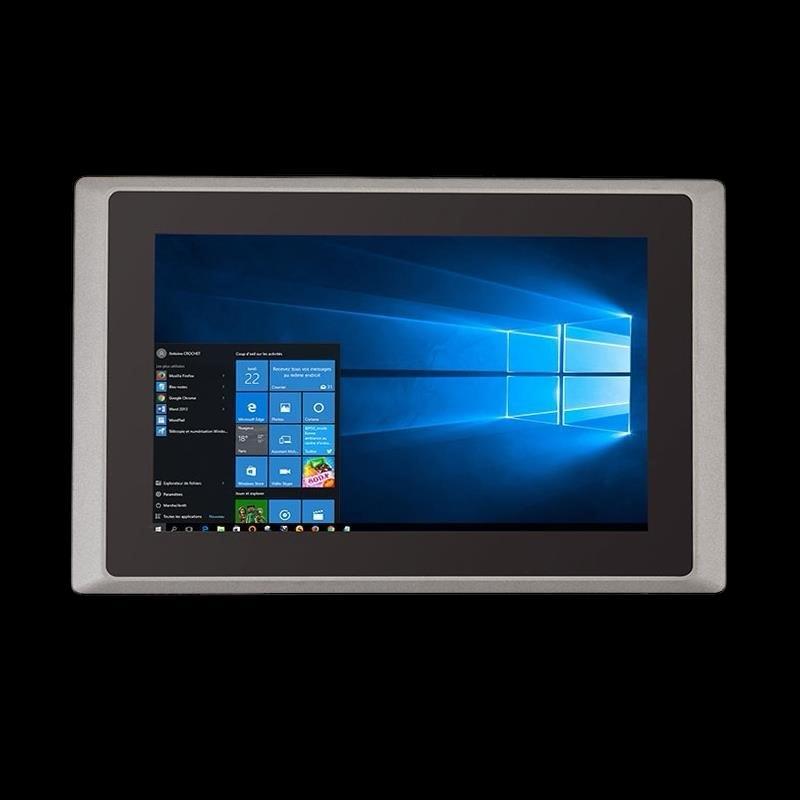

PPC-SH101-J1900 Industrial Panel PC supporting Intel Celeron J1900 Processor with Built in Graphics. PPC-SH101-J1900 comes with 19” LCD Display. PPC-SH101-J1900 supports One 2.5” HDD/SSD, 2x Com Port, 2 x USB 3.0 & 2 USB 2.0 Ports and one Mini PCIe expansion slot.
PPC-SH101-J1900 is ideal for developing high-performance systems for industrial control and Automation, retail, gaming, print imaging and digital signage.

Specification

LCD
Resolution
• 1280 x 800
Brightness
• 300 cd/m²
Contrast Ratio
• 1000:1
Viewing Angle
• 170/170
Backlight
• LED
LCD Color
• 262K/16.2M
Front Frame Material
• Aluminium Alloy
Chassis
• Aluminium Alloy
OSD Function
• Yes
Mounting
• Panel Mount/VESA
Colour
• Black

Touch Screen
Touchscreen Type
• Project Capacitive Touch (10 points)
Touchscreen Interface
• USB
Touch response time
• 2ms
Luminousness
• 90%
Surface Hardness
• 7H
MTBF
• >50 million times

System
Processor
• Intel® Celeron J1900, quad core, 2.0GHz, fanless
BIOS
• AMI
System Memory
• 4GB
Chipset
• -
Video
• Integrated graphics HD Graphics
• One HDMI
Ethernet
• Dual Realtek RTL 8111E Gigabit Ethernet controller
• One Wifi Module (Optional)

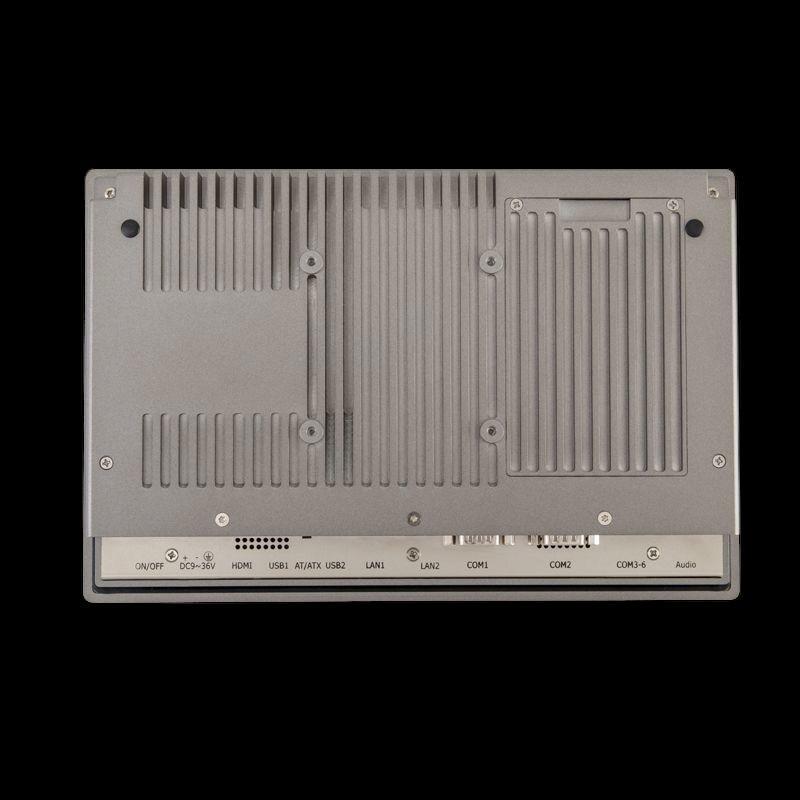

On Board I/O
• 3× USB 2.0 Ports
• 1× USB 3.0 Ports
• 6 x COM RS232 Ports ( COM1~COM 2 RS-232/422/485 & COM3~COM6 3 Wire RS-232)
Watchdog Timer
Programmable watchdog timer for 1~255 seconds.
CMOS
• On-board RTC with 242 bytes of Battery-back CMOS RAM.
Audio
• Realtek ALC662, High Definition Audio (HD)
• Support Line-OUT, MIC
Power
• Support both AT and ATX mode.
Cooling
• One CPU cooling FAN connector nearby CPU socket
• One system cooling FAN connectors for chassis or power supply cooling.
Power Requirement
External Power
• AC 100~240V
Power Input
• 9V ~36V DC
Power Consumption
• ~40W

Mechanical & Environment

Drive bays
• One 2.5 Hard Disk Bay

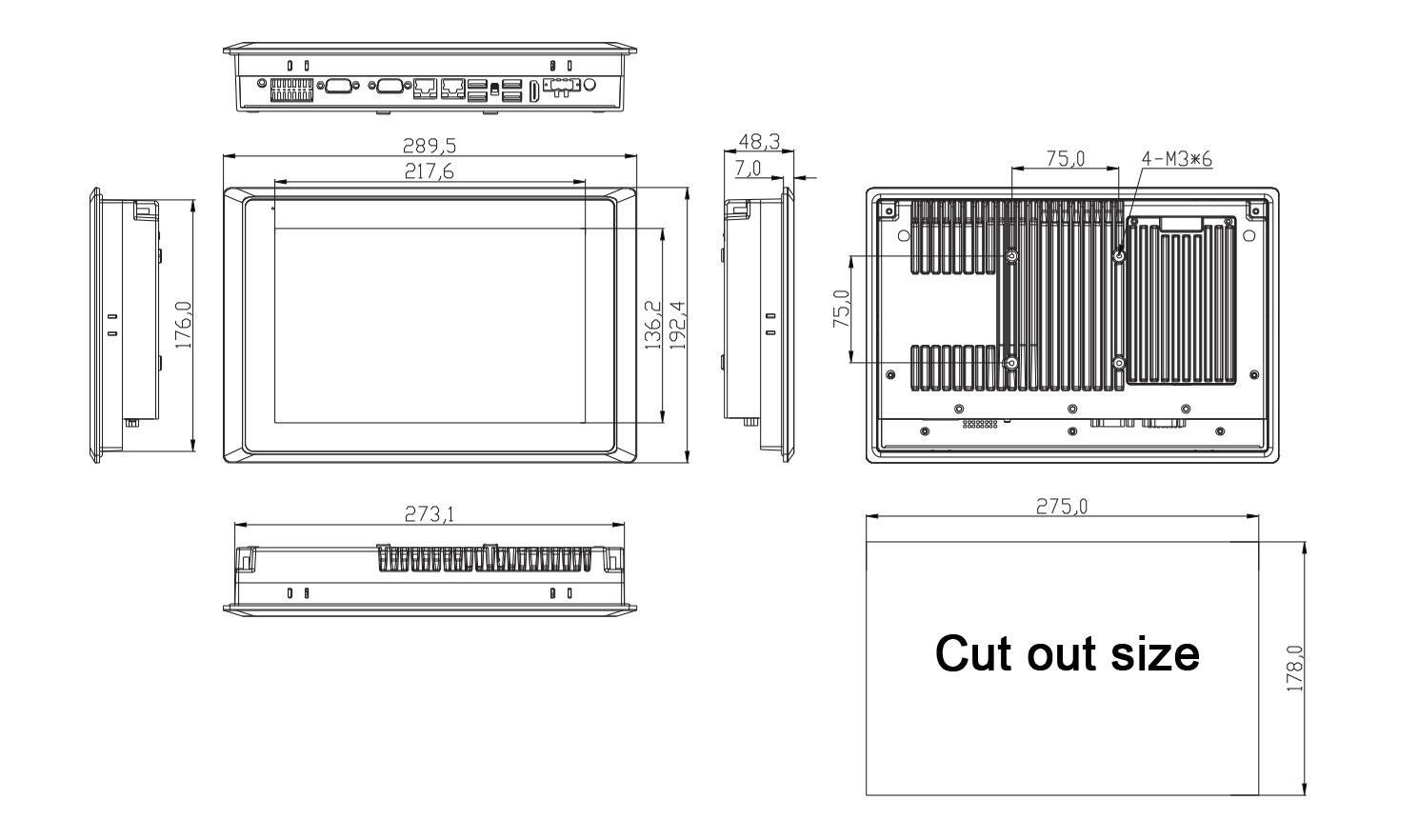

Dimension
• 289.5(W) x 192.4(H) x 48.3(D) mm
Weight
• Gross 4.2kg, NW 3Kg
Operation temperature
• -20 to 60°C
Storage temperature
• -30 to 70°C
Relative humidity
• 5% to 95% (Non-Condensing)
Vibration
• 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Additional Chassis FAN
• N/A
Front Bezel protection
• IP65 Compliant
