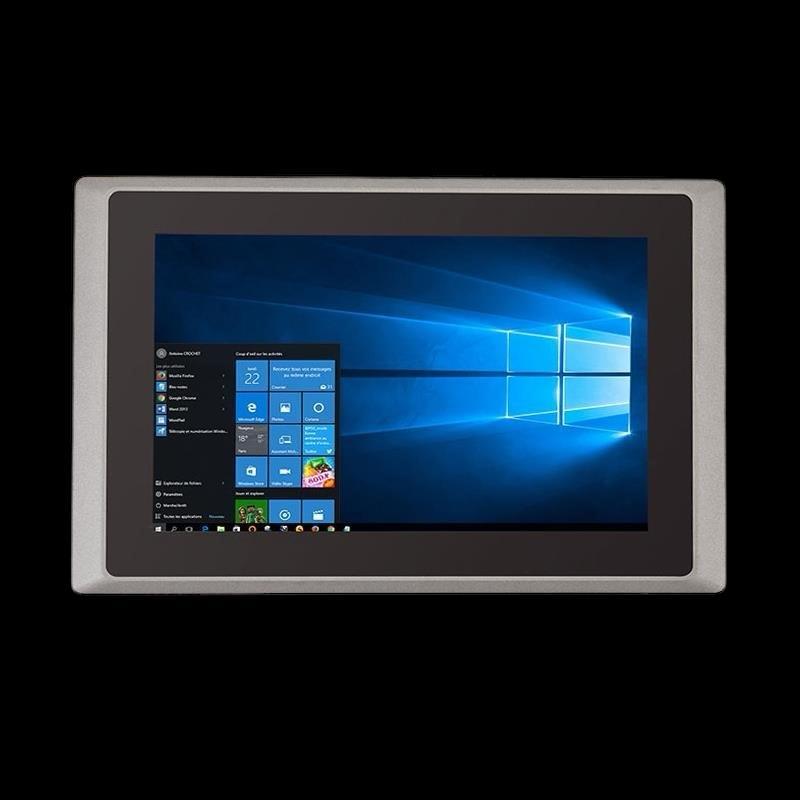

PPC-SH101-4000
Industrial 10.1” LCD Fanless Panel PC with Intel 4th Gen Processor, 4 USB Ports/ 6 COM Ports/ HDMI / Dual Gigabit LAN
Features

§ Intel® 4th Generation processor with graphics built in.
§ Max memory: DDR3 up to 8GB
§ Dual Gigabit Ethernet Ports
§ Intel® Integrated HD Graphics Technology
§ Realtek® ALC662 High-Definition Audio chip on-board
§ Multi I/O: 3x USB 2.0 & 1 x USB3.0, 6x COM ports
§ Bay: 1x 2.5” HDD (Internal) Bays
§ Input Power: 12V DC
§ Front Bezel Protection: IP65
§ Supported OS: Windows® 7/8/10, Linux, Ubuntu, Debian
Introduction
PPC-SH101-4000 Industrial Panel PC supporting Intel 4th Generation Processor with Built in Graphics. PPC-SH101-4000 comes with 10.1” LCD Display. PPC-SH101-4000 supports One 2.5” HDD/SSD, 2x Com Port, 2 x USB 3.0 & 2 USB 2.0 Ports and one Mini PCIe expansion slot.
PPC-SH101-4000 is ideal for developing high-performance systems for industrial control and Automation, retail, gaming, print imaging and digital signage.

Specification

LCD
Resolution
• 1280x800
Brightness
• 400 cd/m2
Contrast Ratio
• 1000:1
Viewing Angle
• 170/170
Backlight
• LED
Backlight MTBF
• 35000Hrs

Touch Screen
Touchscreen Type

• Project Capacitive Touch (10 points)
Touchscreen Interface
• USB
Touch response time
• 2ms
Luminousness
• 90%
Surface Hardness
• 7H
MTBF
• >50 million times

System
Processor

• Intel® Core, I7-4500U, dual core, 1.8GHz, fanless
• Intel® Core, I5-4200U, dual core, 1.6GHz, fanless
BIOS
• AMI
System Memory
• 8GB
Chipset
• -
Video
• Integrated graphics HD Graphics
• One HDMI
Ethernet
• Dual Realtek RTL 8111E Gigabit Ethernet controller
• One Wifi Module (Optional)

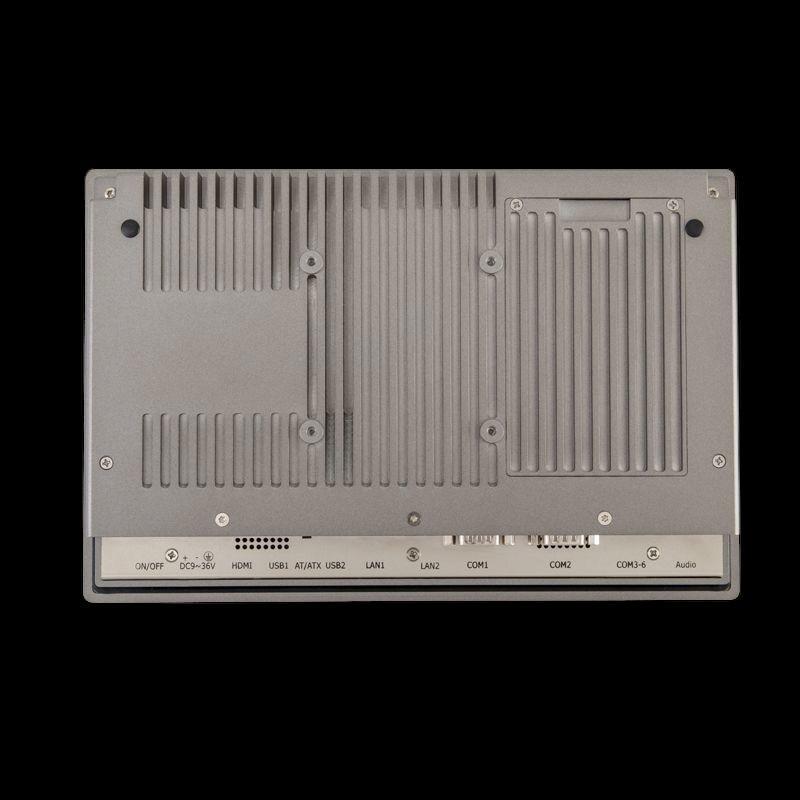

On Board I/O
• 3× USB 2.0 Ports
• 1× USB 3.0 Ports
• 6 x COM RS232 Ports ( COM1~COM 2 RS-232/422/485 & COM3~COM6 3 Wire RS-232)
Watchdog Timer
Programmable watchdog timer for 1~255 seconds.
CMOS
• On-board RTC with 242 bytes of Battery-back CMOS RAM.
Audio
• Realtek ALC662, High Definition Audio (HD)
• Support Line-OUT, MIC
Power
• Support both AT and ATX mode.
Cooling
• One CPU cooling FAN connector nearby CPU socket
• One system cooling FAN connectors for chassis or power supply cooling.
Power Requirement
External Power
• AC 100~240V
Power Input
• 9V ~36V DC
Power Consumption
• ~40W

Mechanical & Environment
Drive Bay
• One 2.5” Hard Disk Bay

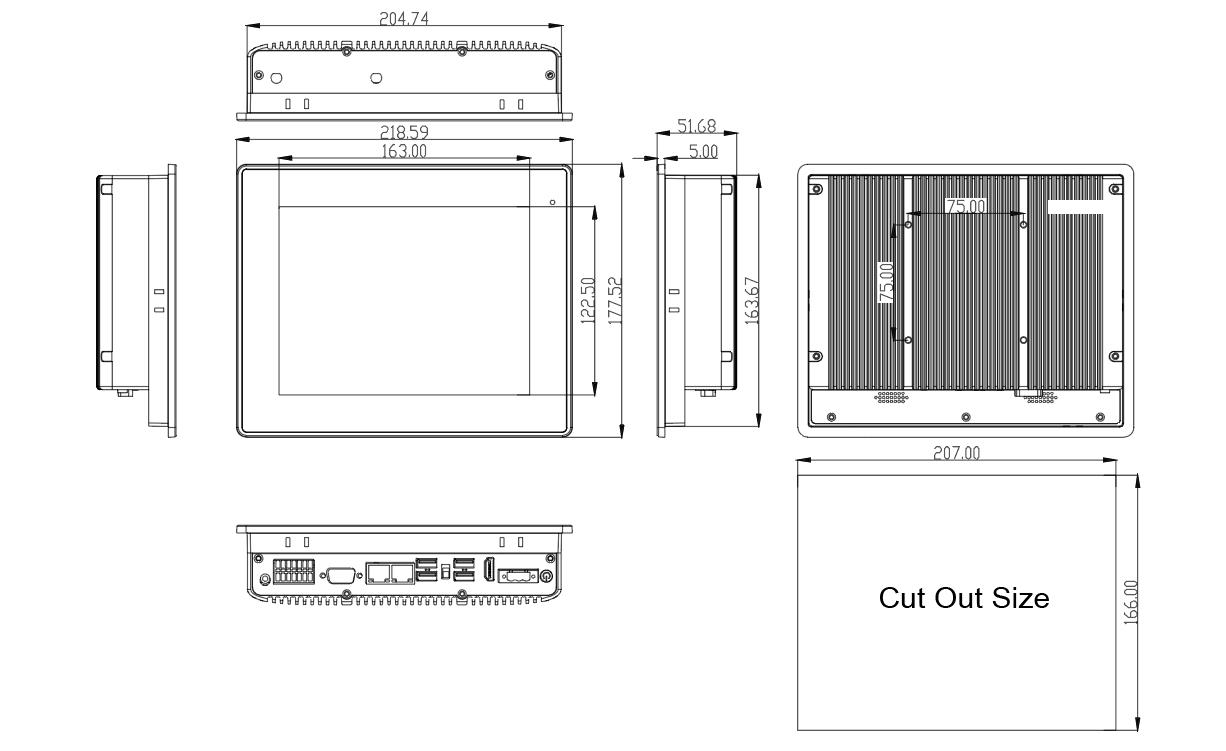

Dimension
• 289.5(W) x 192.4(H) x 48.3(D) mm
Weight
• Gross 4.2kg, NW 3Kg
Operation temperature
• -20 to 60°C
Storage temperature
• -30 to 70°C
Relative humidity
• 5% to 95% (Non-Condensing)
Vibration
• 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Additional Chassis FAN
• N/A
Front Bezel protection
• IP65 Compliant
Ordering Information

PPC-SH101-4500-C109
Industrial 10.1” LCD Fanless Panel PC with Intel 4th Generation i7-4500U Processor, 4 USB Ports/ 6 COM Ports/ HDMI / Dual Gigabit LAN with 10 point PCAP Touchsceen

PPC-SH101-4200-C109
Industrial 10.1” LCD Fanless Panel PC with Intel 4th Generation i5-4200U Processor, 4 USB Ports/ 6 COM Ports/ HDMI / Dual Gigabit LAN with 10 point PCAP Touchsceen
