K19616

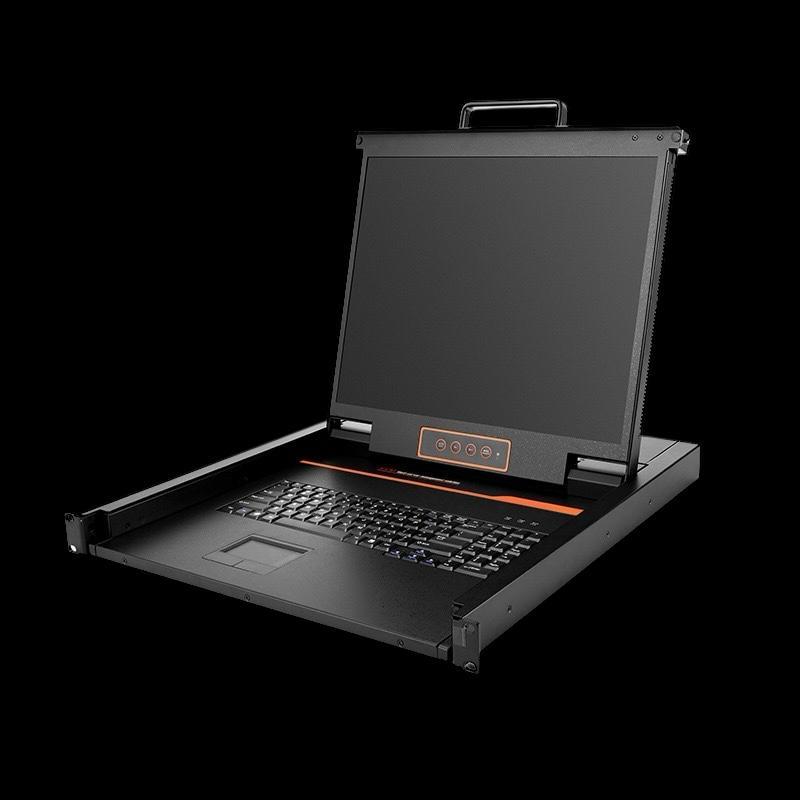

19” 16 Ports VGA LCD KVM Console
Features

Monitor, keyboard and mouse in a 1U compact design
Integrated VGA KVM console with 19" LCD monitor
Superior video quality - up to 1280 x 1024 @ 60 Hz
Combo Interface - supports computers with PS/2 or USB keyboards and mouse
Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Convenient computer switching via front panel LEDs, OSD menu and mouse
Auto scan feature for monitoring user-selected computer
Broadcast mode--operations simultaneously performed on all selected computers
Hot pluggable --add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
Standard rack mount kit and KVM adapter included
Datasheet
Introduction
The K19616 16 Port USB VGA LCD KVM Console includes a full-size keyboard, touchpad and 19" LCD monitor and an 8 port VGA KVM switch. The ultra-thin LCD monitor, full keyboard, touch pad technology and easy-to-install rack mount kit combine to form a high-quality and effective solution for rack monitoring and management. The K19616 supports USB and PS2 connections and high-resolution VGA video up to 1280 x 1024@60Hz.
Specification
Connections
Direct - 16
Max - 16
Port Selection
Push button, Ui Interface, Web
Client Support
Multi-platform- Windows, Sun, Unix, Linux, Mac, Redhat, Ubuntu
LCD Monitor
LCD Mode - SXGA TFT
View Area - 19”
Resolution - 1280x1024@60Hz
Display color - 16.7 M
Brightness - 250cd/m2 (Typ)
Contrast Ratio - 1000: 1 (Typ)
Pixel pitch (mm) - 0.294(H) x 0.294(W)
Input Power
100V-240V (AC), 50-60Hz, 1A
Optional Power Input
-36V - 72V DC
Power Consumption
24W
Emulation
Keyboard - 99 keys (82 keys main keyboard + 17 keys independent small number pad)
Mouse - X/Y resolution (>1000 points/inch)
Supports trackball function

Mechanical & Environment
Operation temperature
0°C to 40°C
Storage temperature
20°C to 60°C
Relative humidity
0% to 80% (Non-Condensing)
Material
SECC
Weight
13kg Net
Dimension
448mm x 605mm x 42.5mm
Packaging
765mm×615mm×185mm
Ordering Information
I-View K19616
19” 16 Ports VGA LCD KVM Console
