Single Rail LCD KVM Console (CAT5-IP)

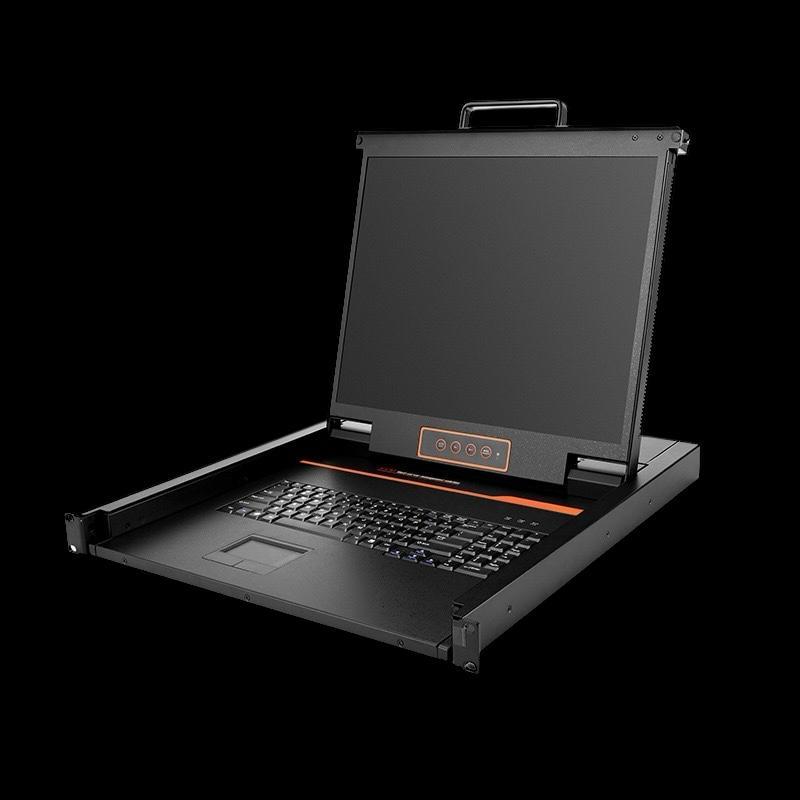

The SINETIC Single rail LCD KVM consoles features an integrated LCD screen, keyboard and touchpad in a 8/16/32 console with 1 IP Remote that occupies only 1U of rack space. It allows access and control up to multiple computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining.

Features

⦁ 19” TFT LCD monitor with highlight, high definition and high resolution
⦁ Rack-mountable in 1U system rack
⦁ Full size keyboard with integrated number pad
⦁ Local console controls up to 16 computers; supports 1 local user and 1 remote user, allowing both users to access server simultaneously
⦁ Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
⦁ Support servers with VGA/DVI/HDMI port
⦁ Local Console, Browser, and AP GUIs offer a unified Multilanguage interface
⦁ Keyboard and mouse emulation to ensure the normal booting
⦁ Auto scan feature for monitoring user-selected computer
⦁ Hot pluggable--add or remove computers without having to power down the switch
⦁ Remote console has WEB browser-based remote management and BIOS-level access, supports AES / DES / 3DES encryption
⦁ Remote users and local users can control the same server/computer synchronously

Introduction

The I-VIEW K19616-C01P is a control unit that allows secure access to 16 computers from a single KVM console which features an integrated 19” CD monitor, keyboard, and touchpad in a 1U rack-mountable housing. It features IP-based connectivity that allows local and remote operators to monitor and access the computers concurrently. It’s easy to set up the CAT5 LCD KVM over IP Switch, just plug the cable into the appropriate port, and it’s good to go.

Specification

Connections
• Direct - 16
• Max - 16
Port Selection
• Push button, Ui Interface, Web
Client Support
• Multi-platform- Windows, Sun, Unix, Linux, Mac, Redhat, Ubuntu
Remote
• Remote Control - KVM Control (ActiveX Control)
• Management Interface - Web
• Security - DES encryption
• Optimum Resolution - 1280x1024@60Hz
• Network - 10/100/1000 Mbps
• Video - Quality and Tolerance adjustable (up to 30 FPS)
LCD Monitor
• LCD Mode - SXGA TFT
• View Area - 19”
• Resolution - 1280x1024@60Hz
• Display color - 16.7 M
• Brightness - 250cd/m² (Typ)
• Contrast Ratio - 1000: 1 (Typ)
• Pixel pitch (mm) - 0.294(H) x 0.294(W)
Input Power
• 100V-240V (AC), 50-60Hz, 1A
Optional Power Input
• -36V - 72V DC
Power Consumption
• 24W
Emulation
• Keyboard - 99 keys (82 keys main keyboard + 17 keys independent small number pad)
• Mouse - X/Y resolution (>1000 points/inch)
• Supports trackball function

Mechanical & Environment

Operation temperature
• 0°C to 40°C
Storage temperature
• 20°C to 60°C
Relative humidity
• 0% to 80% (Non-Condensing)
Material
• SECC
Weight
• 13kg Net
Dimension
• 448mm x 605mm x 42.5mm
Packaging
• 765mm×615mm×185mm
