Features

17.3” TFT LCD monitor, high brightness, high resolution
Metal 19” rack with 1U height
Ultra slim 99 keys keyboard with small numeric keyboard
High resolution and high flexibility with touchpad; with two function buttons and scroll wheel, standard USB port
Access and control up to 8 / 16 / 32 computes from a single USB KVM (keyboard, video and mouse) console
Extending the transmitting distance between the console and the computer - 1600*1200@60Hz (50m),
1280*1024@60Hz (100m), 1024*768@60Hz (150m)
Supports Multiple systems: Windows2000/XP/Vista, Linux, Mac and Sun
Convenient computer switching via front panel pushbuttons, hotkeys, OSD menu or mouse
Hot pluggable - add or remove computers without having to power down the switch
Auto scan feature for monitoring user-selected computers
Broadcast mode - operations simultaneously performed on all selected computers
Keyboard and mouse emulation function
Rack-mountable in 1U system rack

Introduction

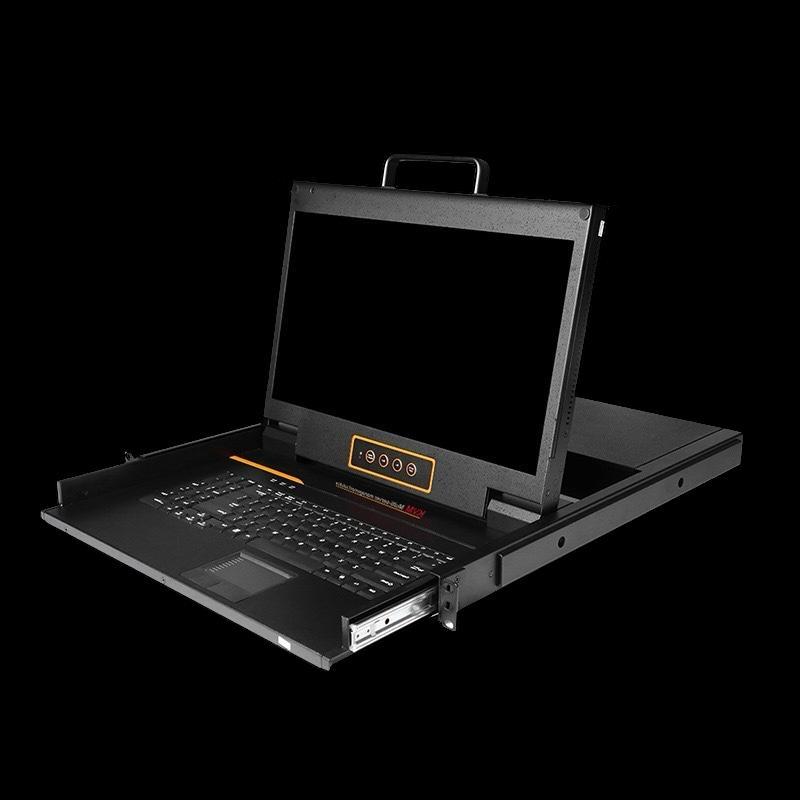

The 17.3” CAT5 KVM switch is a control unit that allows access to multiple computers from an USB KVM console. It allows to access and control up to 8 / 16 / 32 computers from a single console (keyboard, mouse, and monitor). As many as 256 / 512 / 1024 computers can be controlled from a single keyboard-monitor-mouse console by cascading to another 31 additional switches. The KVM switch supports USB connections for the console and computers, RJ-45 connectors and CAT 5e/6 cable are used to link to the computers.

Specification
Connections
Direct - 8
Max - 8
Port Selection
Push button, Ui Interface, Web
Client Support
Multi-platform- Windows, Sun, Unix, Linux, Mac, Redhat, Ubuntu
LCD Monitor
LCD Mode - FHD TFT
View Area - 17.3”
Resolution - 1280x1024@60Hz
Display color - 16.7 M
Brightness - 250cd/m² (Typ)
Contrast Ratio - 1000: 1 (Typ)
Pixel pitch (mm) - 0.1989(H) x 0.1989(W)
Input Power
100V-240V (AC), 50-60Hz, 1A
Optional Power Input
-36V - 72V DC
Power Consumption
24W
Emulation
Keyboard - 99 keys (82 keys main keyboard + 17 keys independent small number pad)
Mouse - X/Y resolution (>1000 points/inch)
Supports trackball function

Mechanical & Environment
Operation temperature
0°C to 40°C
Storage temperature
20°C to 60°C
Relative humidity
0% to 80% (Non-Condensing)
Material
SECC
Weight
13kg Net
Dimension
448mm×525.6mm×42.5mm
Packaging
765mm×615mm×185mm
