Single Rail LCD KVM Console (CAT5)

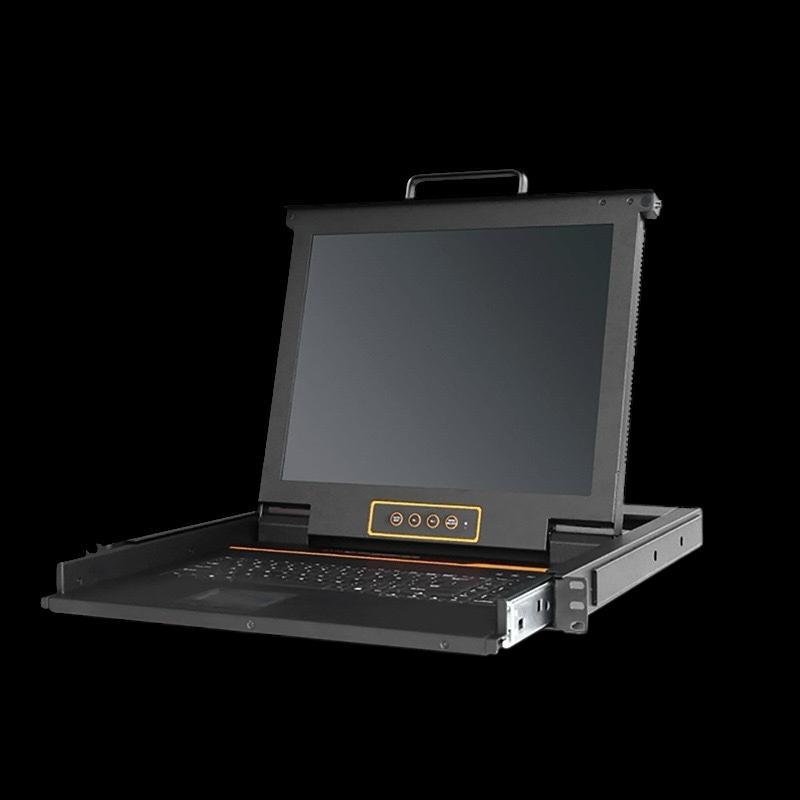

The SINETIC Single rail LCD KVM consoles features an integrated LCD screen, keyboard and touchpad in a 8/16/32 console that occupies only 1U of rack space. It allows access and control up to multiple computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining.

Features

⦁ 17” TFT LCD monitor, high brightness, high resolution
⦁ Metal 19” rack with 1U height
⦁ Ultra slim 99 keys keyboard with small numeric keyboard
⦁ High resolution and high flexibility with touchpad; with two function buttons and scroll wheel, standard USB port
⦁ Access and control up to 8 / 16 / 32 computes from a single USB KVM (keyboard, video and mouse) console
⦁ Extending the transmitting distance between the console and the computer - 1600*1200@60Hz (50m),
⦁ 1280*1024@60Hz (100m), 1024*768@60Hz (150m)
⦁ Supports Multiple systems: Windows2000/XP/Vista, Linux, Mac and Sun
⦁ Convenient computer switching via front panel pushbuttons, hotkeys, OSD menu or mouse
⦁ Hot pluggable - add or remove computers without having to power down the switch
⦁ Auto scan feature for monitoring user-selected computers
⦁ Broadcast mode - operations simultaneously performed on all selected computers
⦁ Keyboard and mouse emulation function
⦁ Rack-mountable in 1U system rack

Introduction

The 17” CAT5 KVM switch is a control unit that allows access to multiple computers from an USB KVM console. It allows to access and control up to 8 / 16 / 32 computers from a single console (keyboard, mouse, and monitor). As many as 256 / 512 / 1024 computers can be controlled from a single keyboard-monitor-mouse console by cascading to another 31 additional switches. The KVM switch supports USB connections for the console and computers, RJ-45 connectors and CAT 5e/6 cable are used to link to the computers.

Specification

Connections
• Direct - 16
• Max - 16
Port Selection
• Push button, Ui Interface, Web
Client Support
• Multi-platform- Windows, Sun, Unix, Linux, Mac, Redhat, Ubuntu
LCD Monitor
• LCD Mode - SXGA TFT
• View Area - 17”
• Resolution - 1280x1024@60Hz
• Display color - 16.7 M
• Brightness - 250cd/m2 (Typ)
Contrast Ratio - 1000: 1 (Typ)
• Pixel pitch (mm) - 0.244(H) x 0.244(W)
Input Power
• 100V-240V (AC), 50-60Hz, 1A
Optional Power Input
• -36V - 72V DC
Power Consumption
• 24W
Emulation
• Keyboard - 99 keys (82 keys main keyboard + 17 keys independent small number pad)
• Mouse - X/Y resolution (>1000 points/inch)
• Supports trackball function

Mechanical & Environment

Operation temperature
• 0°C to 40°C
Storage temperature
• 20°C to 60°C
Relative humidity
• 0% to 80% (Non-Condensing)
Material
• SECC
Weight
• 13kg Net
Dimension
• 448mm x 605mm x 42.5mm
Packaging
• 765mm×615mm×185mm
