Rack Mount KVM Switch (VGA)

SINETIC Rack Mount KVM Switch (VGA) switch allows access and control up to 8/16 computers from a single console (keyboard, mouse and monitor). As many as 256/512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches. The KVM switch supports USB/VGA connections for the console and computers.

KVM-RK16

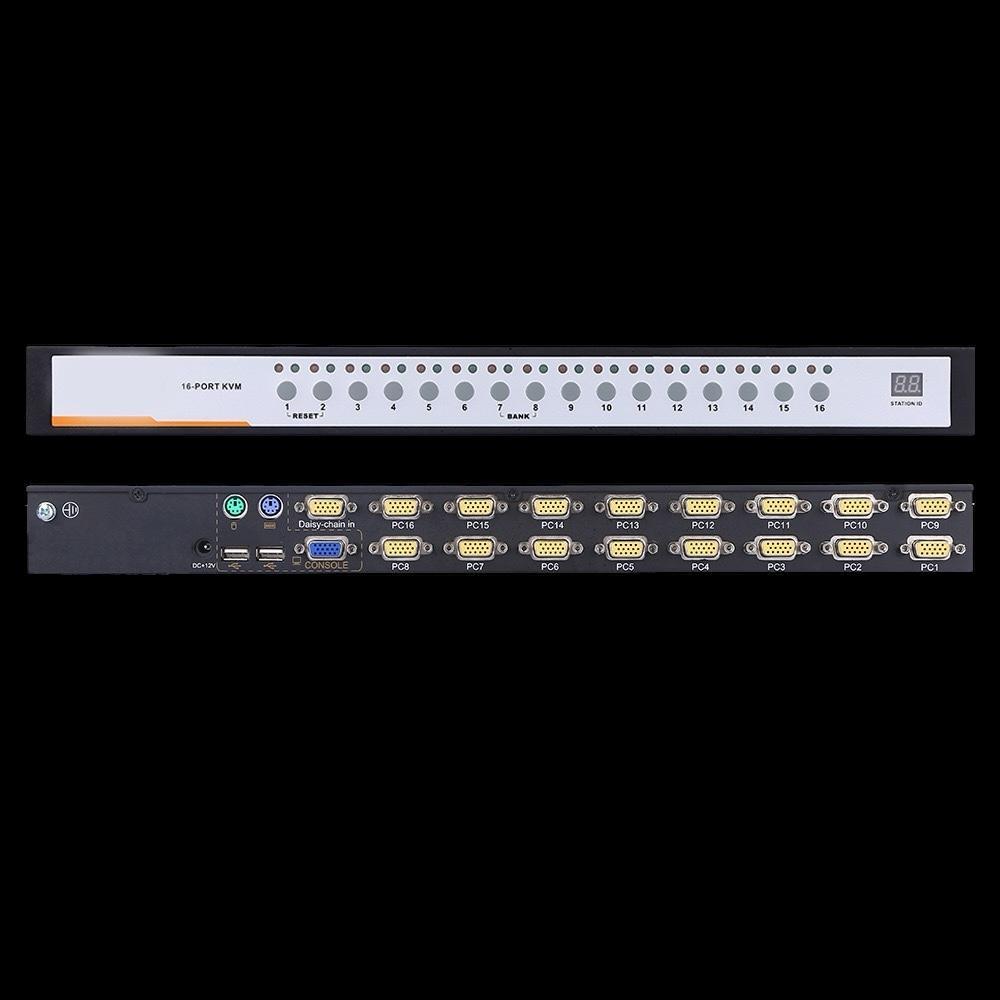

1U 19” Rack Mount 16 Ports VGA KVM Switch

Introduction Specification Ordering Information Datasheet

Features

⦁ Control 16 VGA computers from a single console
⦁ Fit for standard 19” rack mounting
⦁ Fully complied with HDCP
⦁ Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
⦁ Support wireless keyboard and mouse from different suppliers
⦁ Convenient computer switching via front panel pushbuttons, hotkeys, or mouse
⦁ Complete keyboard & mouse emulation for error-free booting.
⦁ Auto scan feature for monitoring user-selected computers
⦁ Broadcast mode - operations simultaneously performed on all selected computers
⦁ Support hot-plugging

Introduction

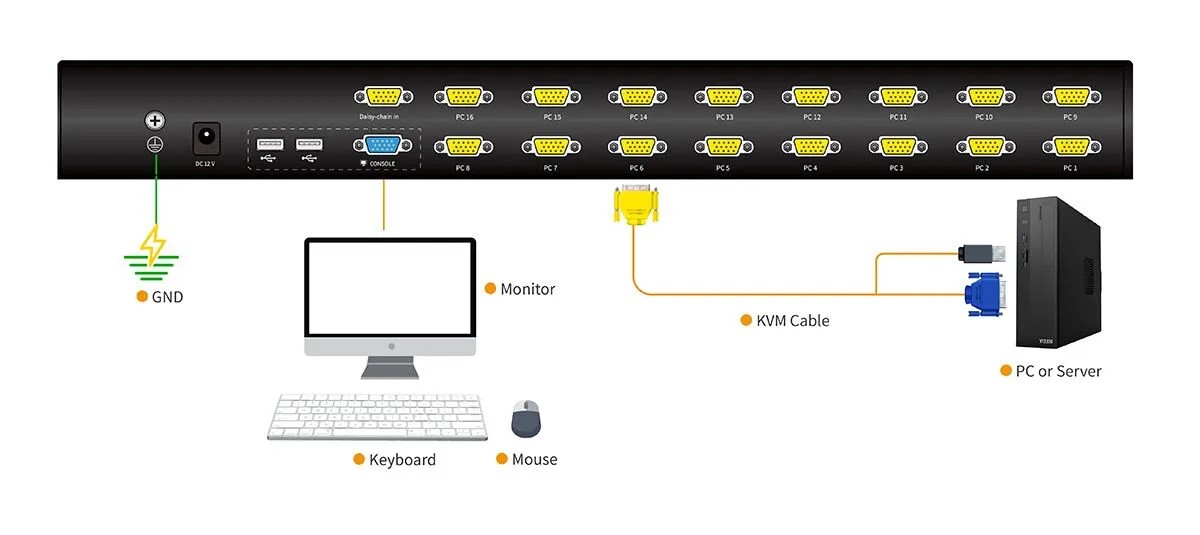

The KVM-RK16 KVM switch allows access and control up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches. The KVM switch supports both USB and PS/2 connections for the console and computers.

Specification

Connections
⦁ 16
Max Computer Connection
⦁ 512
Port Selection
⦁ Pushbutton, Hotkey
Console ( monitor keyboard mouse )
⦁ 1x VGA Type A
⦁ 2x USB type A
KVM
⦁ 16x VGA Type A
⦁ 16x USB Type B
Switch ( Port Selection )
⦁ 16x buttons
LED indicator
⦁ Online : 16* (green)
⦁ Selected : 16* (orange)
⦁ Port Display : 2*7- Segment (orange)
I/R value
⦁ DC 12V ; 0.5A
Resolution
⦁ 1920x1080@60Hz
Consumption
⦁ 5W
Emulation
⦁ keyboard/mouse ( PS/2 ,USB )

Mechanical & Environment

Operation temperature
• 0°C to 40°C
Storage temperature
• 20°C to 60°C
Relative humidity
• 0% to 80% (Non-Condensing)
Material
• SECC
Weight
• 2.7kg Net
Dimension
• 440mmx169mmx43mm
Packaging
• 512mm x 152mm x 252mm
