Rack Mount KVM Switch (DVI)

SINETIC Rack Mount KVM Switch (DVI) switch allows access and control up to 8/16 computers from a single console (keyboard, mouse and monitor). As many as 256/512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches. The KVM switch supports USB/DVI connections for the console and computers.

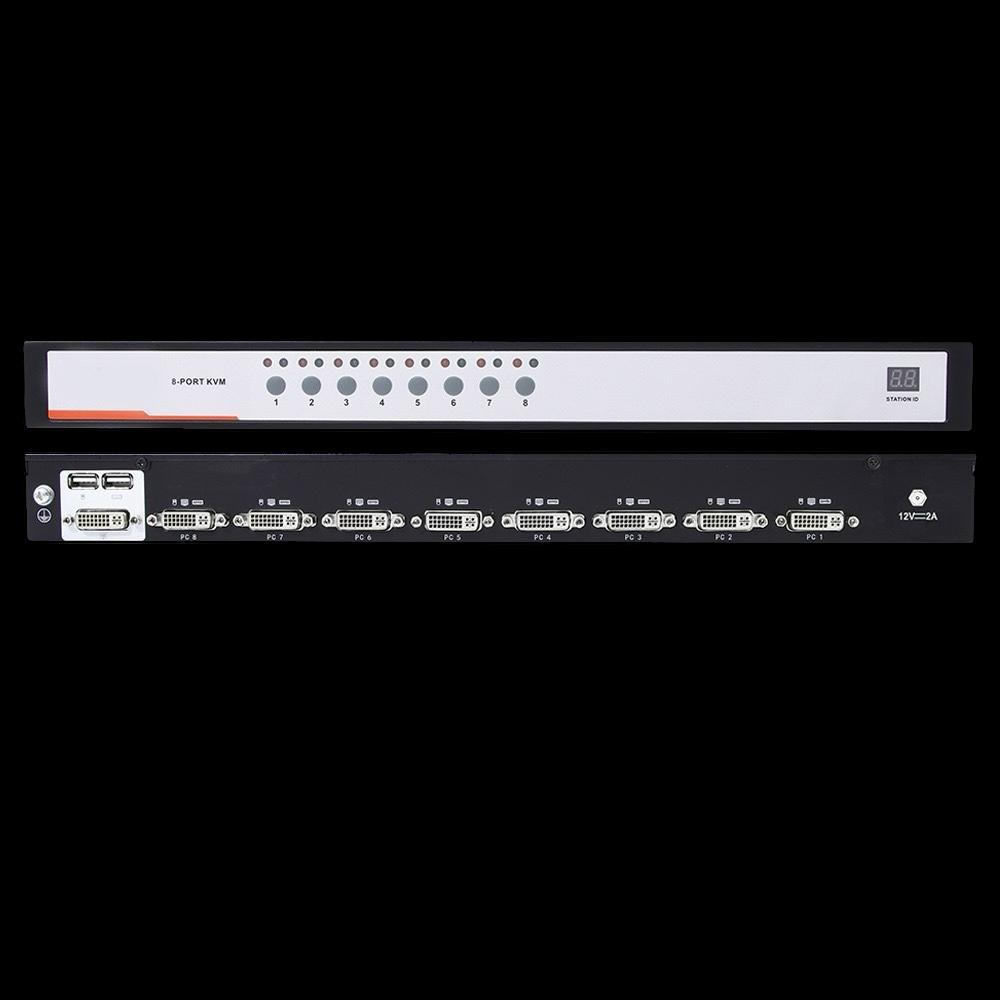

KVM-RK08D

1U 19” Rack Mount 8 Ports DVI KVM Switch

Introduction Specification Ordering Information Datasheet

Features

⦁ Control 8 DVI computers from a single console
⦁ Fit for standard 19” rack mounting
⦁ Fully complied with HDCP
⦁ Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
⦁ Support wireless keyboard and mouse from different suppliers
⦁ Convenient computer switching via front panel pushbuttons, hotkeys, or mouse
⦁ Complete keyboard & mouse emulation for error-free booting.
⦁ Auto scan feature for monitoring user-selected computers
⦁ Broadcast mode - operations simultaneously performed on all selected computers
⦁ Support hot-plugging

Introduction

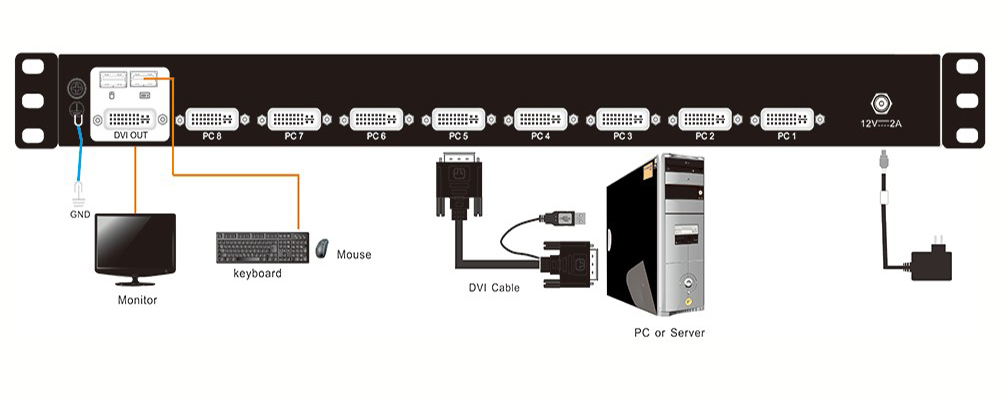

The KVM-RK08D 8 port DVI KVM Switch is a control unit that access and control up to 8 DVI computers from a single USB keyboard, USB mouse and monitor console. Switch between computers by front panel pushbuttons or keyboard hotkey commands. The KVM-RK08D support resolution up to 1920x1080@60Hz.

Specification

Connections
• 8
Max Computer Connection
• 256
Port Selection
• Pushbutton, Hotkey
Console ( monitor keyboard mouse )
• 1x DVI Type A
• 2x USB type A
KVM
• 8x DVI Type A
• 8x USB Type B
Switch ( Port Selection )
• 8x buttons
LED indicator
• Online : 16* (green)
• Selected : 16* (orange)
• Port Display : 2*7- Segment (orange)
I/R value
DC 12V ; 0.5A
Resolution
• 1920x1080@60Hz
Consumption
• 5W
Emulation
• keyboard/mouse ( PS/2 ,USB )

Mechanical & Environment

Operation temperature
• 0°C to 40°C
Storage temperature
• 20°C to 60°C
Relative humidity
• 0% to 80% (Non-Condensing)
Material
• SECC
Weight
2.7kg Net
Dimension
440mmx169mmx43mm
Packaging
• 512mm x 152mm x 252mm
