Features

⦁ 1U rack mount keybord drawer, designed to fit a standard 19” rack
⦁ Support USB and PS/2 connection
⦁ Heavy-duty steel housing
⦁ Hot pluggable -add or remove computers without having to power down the switch

Introduction

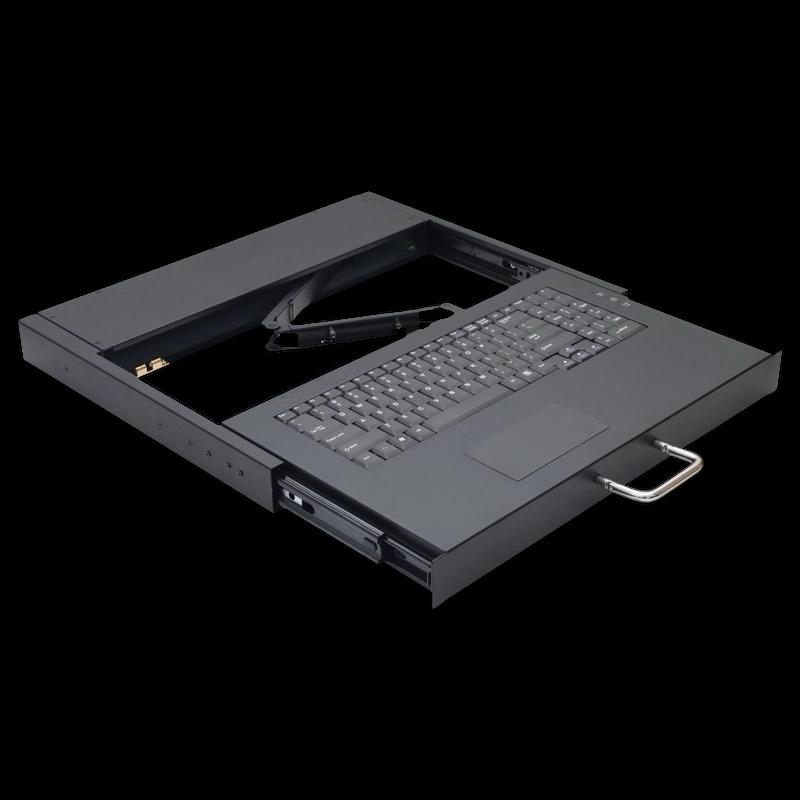

SK-5300 is a rack mount keyboard drawer for keyboard and mouse console. Ultra slim keyboard with 99 keys and numeric keyboard, standard PS/2 port are built in 1U height metal structure that fits for standard 19” rack mounting. It can directly connect and control one computer and needs no software. The touchpad boasts high resolution and high flexibility. The rack mount keyboard tray supports both USB and PS2 connections

Specification

Computer Connections
• 1
Control Port (keyboard /mouse)
• 1x DB9F
PC Port (keyboard /mouse)
• 1xUSB type A
• 1x 6P Mini-DIN F(purple)
• 1x 6P Mini-DIN F(green)
Cable Length
• 1800mm

Mechanical & Environment

Working Temperature
• 0 ─50 ℃
Store Temperature
• -20 ─ 60 ℃
Humidity
• 0─80% RH, non-condensing
N.W.
• 4kg
Material
• Metal
Product Dimension (W × D × H)
• 440mm×355mm×42.5mm
Package Dimension (W × D × H)
• 532mm×455mm×125mm.
