Features

Uses one fiber optic cable to connect the transmitter and receiver units
Allows DVI dual view access to your computer from a remote console up to 300m by using multimode type cable, if the cable type is single mode, transmitting distance is up to 10km.
Superior HDMI video quality of up to 1920x1080@60Hz.
Transparent USB 2.0 - Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter.
Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT.
RS232 serial port - support connection to a serial terminal.
Support local HDMI output
Easy to install - no software required - connecting cables to the devices is all it takes
Plug and play

Introduction

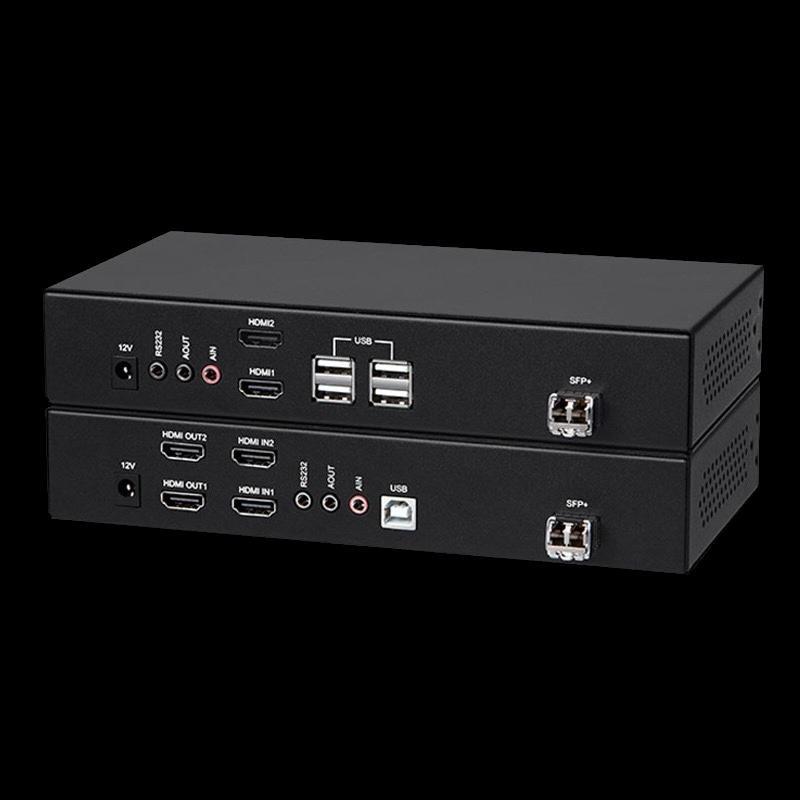

The KVM-FEX201H USB Dual HDMI over fiber KVM extender integrates the latest HDBaseT™ technology and delivers dual HD HDMI video, USB and stereo audio signals up to 300m by using fiber optics; if the cable type is single mode, the transmitting distance is up to 10km. A complete set of KVM-FEX201H including Transmitter (KVM-FEX201H_TX) and Receiver (KVM-FEX201H_RX).
The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices. The KVM-FEX201H enables remote high-speed access to a computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.

Specification
KVM-FEX201H_TX
Input
2 x HDMI
Output
2 x HDMI
Power
12V
Network Port
1 x Fibre Optic
Mic
1 x 3.5mm Min stereo port (pink)
Speaker
1 x 3.5mm Min stereo port (green)
USB Type B
1
USB 2.0
N/A

KVM-FEX201H_RX
Input
N/A
Output
2 x HDMI
Power
12V
Network Port
1 x Fibre Optic
Mic
1 x 3.5mm Min stereo port (pink)
Speaker
1 x 3.5mm Min stereo port (green)
USB Type B
N/A
USB 2.0
4 x 2 layer USB type A

Resolution
1920 x1080@ 60 Hz
Connection Cable
Fibre Optic Cable
Power Input
DC 9~12V
Power Consumption
12W

Mechanical & Environment
Operating Temperature
0-70℃
Storage Temperature
-20-85℃
Humidity
0-80%RH,Non-condensing
N.W.(kg)
0.625kg
Product Dimension (W × D × H)
198 x 116 x 44mm
Package Dimension (W × D × H)
560x 280 x 130mm
