KVM Extender

SINETIC KVM extender essentially allows users to remotely control a device or computer. The unit comes with a receiver that shows the display of the device and a transmitter that sends the display signal from the sourced computer. This eliminates the space requirements for large equipment, allowing businesses to maximize the space of their work floor.

As the top KVM extender manufacturer, SINETIC ensures all units achieve the best possible performance such as HDMI 2.0 support for 4k display resolution. We also have upgradeable firmware to facilitate specific applications of our KVM extenders. With a 50,000 MTBF rate and certification, SINETIC helps you boost the efficiency of your business or project operation

Features

⦁ Uses one fiber optic cable to connect the transmitter and receiver units
⦁ Allows access to your computer from a remote console up to 300m by using multimode type cable, if the cable type is single mode, transmitting distance is up to 10km.
⦁ Superior HDMI video quality of up to 3840 x 2160@60Hz.
⦁ Transparent USB 2.0 - Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter.
⦁ Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT.
⦁ RS232 serial port - support connection to a serial terminal.
⦁ Support local HDMI output
⦁ Easy to install - no software required - connecting cables to the devices is all it takes
⦁ Plug and play

Introduction

The KVM-FEX101H USB HDMI over fiber KVM extender integrates the latest HDBaseT™ technology and delivers HD HDMI video, USB and stereo audio signals up to 300m by using fiber optics; if the cable type is single mode, the transmitting distance is up to 10km.

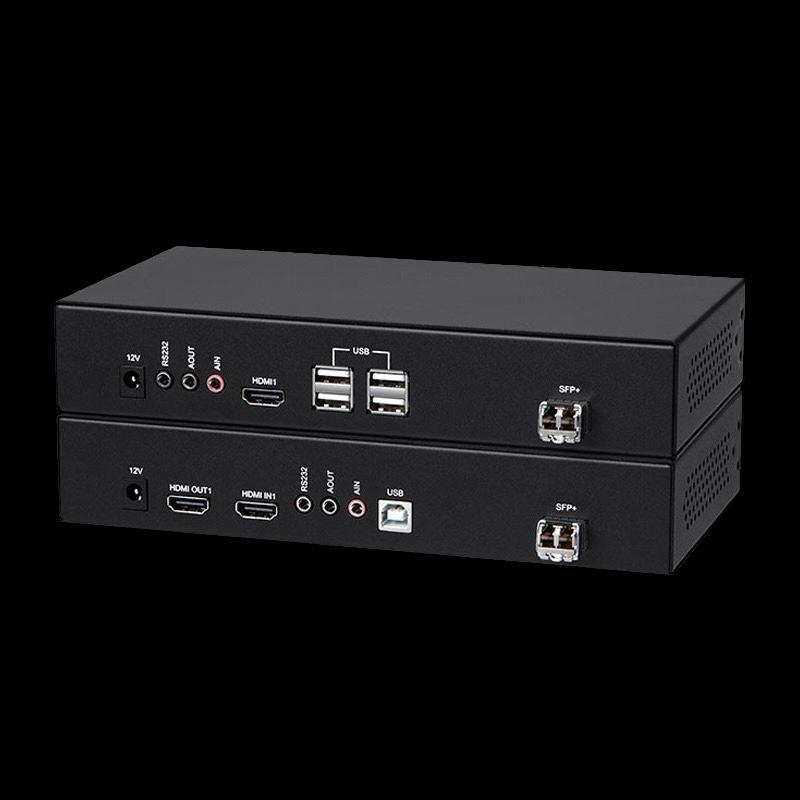

A complete set of KVM-FEX101H including Transmitter (KVM-FEX101H_TX) and Receiver (KVM-FEX101H_RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices. The KVM-FEX101H enables remote high-speed access to a single computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.

Specification

KVM-FEX101H_TX
Input
• 1 x HDMI
Output
• 1 x HDMI
Power
• 12V
Network Port
• 1 x Fibre Optic
Mic
• 1 x 3.5mm Min stereo port (pink)
Speaker
• 1 x 3.5mm Min stereo port (green)
USB Type B
• 1
USB 2.0
• N/A

KVM-FEX201H_RX
Input
• N/A
Output
• 1 x HDMI
Power
• 12V
Network Port
• 1 x Fibre Optic
Mic
• 1 x 3.5mm Min stereo port (pink)
Speaker
• 1 x 3.5mm Min stereo port (green)
USB Type B
• N/A
USB 2.0
• 4 x 2 layer USB type A

Resolution
• 1920 x1080@ 60 Hz
Connection Cable
• Fibre Optic Cable
Power Input
• DC 9~12V
Power Consumption
• 12W

Mechanical & Environment

Operation temperature
• 0-70℃
Storage Temperature
• -20-85℃
Humidity
• 0-80%RH,Non-condensing
N.W.(kg)
• 0.625kg
Product Dimension (W × D × H)
• 198 x 116 x 33mm
Package Dimension (W × D × H)
• 560x 280 x 130mm
