KVM Extender

SINETIC KVM extender essentially allows users to remotely control a device or computer. The unit comes with a receiver that shows the display of the device and a transmitter that sends the display signal from the sourced computer. This eliminates the space requirements for large equipment, allowing businesses to maximize the space of their work floor.

As the top KVM extender manufacturer, SINETIC ensures all units achieve the best possible performance such as HDMI 2.0 support for 4k display resolution. We also have upgradeable firmware to facilitate specific applications of our KVM extenders. With a 50,000 MTBF rate and certification, SINETIC helps you boost the efficiency of your business or project operation

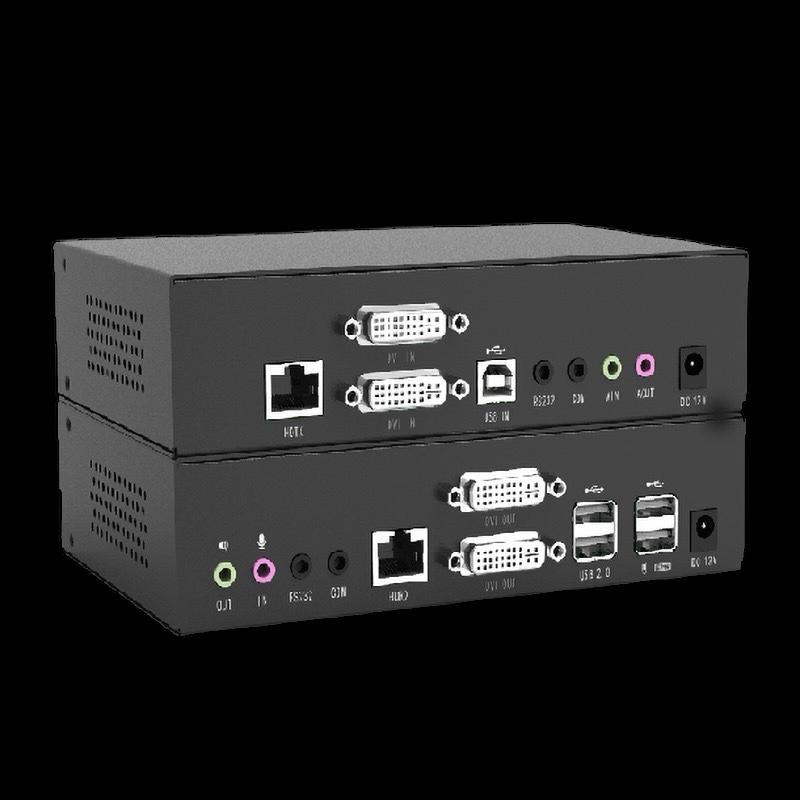

KVM-EX201D

KVM Extender - USB Dual DVI Over CAT5e & CAT6 includes TX and RX Units

Introduction Specification Ordering Information Datasheet

Features

⦁ Allows dual DVI access to your computer from a remote console up to 100m
⦁ Support USB keyboard and mouse
⦁ DVI HD video, resolution up to 1920 x 1080 @60Hz@100m
⦁ Transparent USB 2.0 - Supports a wide range of USB devices including
⦁ keyboards, mice, mass storage devices and printers. It provides 4 USB
⦁ ports on the Receiver and 1 USB on the Transmitter.
⦁ Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT
⦁ Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable
⦁ Easy to install - no software required - connecting cables to the devices is all it takes
⦁ Support widescreen
⦁ Plug and play
⦁ Support firmware upgrade

Introduction

The KVM-EX201D USB Dual DVI HDBaseT™ KVM extender integrates the latest HDBaseT™ technology and delivers high quality Dual DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable.
A complete set of KVM-EX201D including Transmitter (KVM-EX201D_TX) and Receiver (KVM-EX201D_RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.
The KVM-EX201D enables remote high-speed access to a single computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.

Specification

KVM-EX201D_TX
Input
• 1 x DVI
Output
• N/A
Power
• 12V
Network Port
• 1 x RJ45
Mic
• 1 x 3.5mm Min stereo port (pink)
Speaker
• 1 x 3.5mm Min stereo port (green)
USB Type B
• 1
USB 2.0
• N/A

KVM-EX201D_RX
Input
• N/A
Output
• 1 x DVI
Power
• 12V
Network Port
• 1 x RJ45
Mic
• 1 x 3.5mm Min stereo port (pink)
Speaker
• 1 x 3.5mm Min stereo port (green)
USB Type B
• N/A
USB 2.0
• 4 x 2 layer USB type A

Resolution
• 1920 x1080@ 60 Hz
Connection Cable
• Cat 5e / 6
Power Input
• DC 12V
Power Consumption
• 5W

Mechanical & Environment

Operation temperature
• 0-70℃
Storage Temperature
• -20-85℃
Humidity
• 0-80%RH,Non-condensing
N.W.(kg)
• 0.64kg
Product Dimension (W × D × H)
• 180 x 119.5 x 32.5mm
Package Dimension (W × D × H)
• 260 x 179 x 102mm
