KVM Extender

SINETIC KVM extender essentially allows users to remotely control a device or computer. The unit comes with a receiver that shows the display of the device and a transmitter that sends the display signal from the sourced computer. This eliminates the space requirements for large equipment, allowing businesses to maximize the space of their work floor.

As the top KVM extender manufacturer, SINETIC ensures all units achieve the best possible performance such as HDMI 2.0 support for 4k display resolution. We also have upgradeable firmware to facilitate specific applications of our KVM extenders. With a 50,000 MTBF rate and certification, SINETIC helps you boost the efficiency of your business or project operation

Features

⦁ Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable
⦁ Support HD video, resolution is up to 1920 x 1200@60Hz
⦁ Support USB 2.0 full speed ports
⦁ Supports individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT
⦁ Easy to install - no software required - connecting cables to the devices is all it takes

Introduction

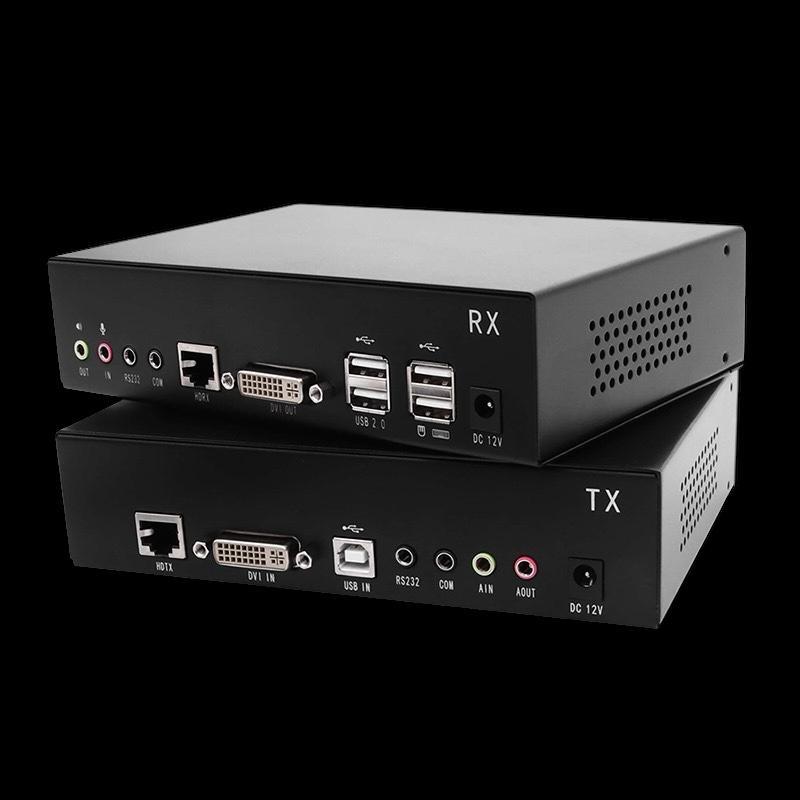

The KVM-EX101D USB DVI over Cat5e/Cat6 KVM Extender allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It can deliver the video, stereo audio, USB signals up to 100 meters using single Cat5e / Cat 6 cable. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required - such as transportation control centres, medical facilities, industrial warehouses, and extended workstations. A complete set of KVM Extender consists of two parts - local unit and remote unit.

Specification

Transmitter
Input
• 1 x DVI
Output
• N/A
Power
• 12V
Network Port
• 1 x RJ45
Mic
• 1 x 3.5mm Min stereo port (pink)
Speaker
• 1 x 3.5mm Min stereo port (green)
USB Type B
• 1
USB 2.0
• N/A

Receiver
Input
• N/A
Output
• 1 x DVI
Power
• 12V
Network Port
• 1 x RJ45
Mic
• 1 x 3.5mm Min stereo port (pink)
Speaker
• 1 x 3.5mm Min stereo port (green)
USB Type B
• N/A
USB 2.0
• 4 x 2 layer USB type A

Resolution
• 1920 x1080@ 60 Hz
Connection Cable
• Cat 5e / 6
Power Input
• DC 12V
Power Consumption
• 5W

Mechanical & Environment

Operation temperature
• 0-70℃
Storage Temperature
• -20-85℃
Humidity
• 0-80%RH,Non-condensing
N.W.(kg)
• 0.64kg
Product Dimension (W × D × H)
• 180 x 119.5 x 32.5mm
Package Dimension (W × D × H)
• 260 x 179 x 102mm
