SINETIC offers and wide range of KVM cables and accessories for our K Series KVM Products. These include cables of various length from 1.8, 3.0, 5.0 meters and dongles for CAT5 solutions.
⦁ USBCAT5adapterwithDisplayPortinterface ⦁ Transmittingdistance: 100m ⦁ Resolutionisupto1920x1080@60Hz ⦁ Hotpluggable
Introduction

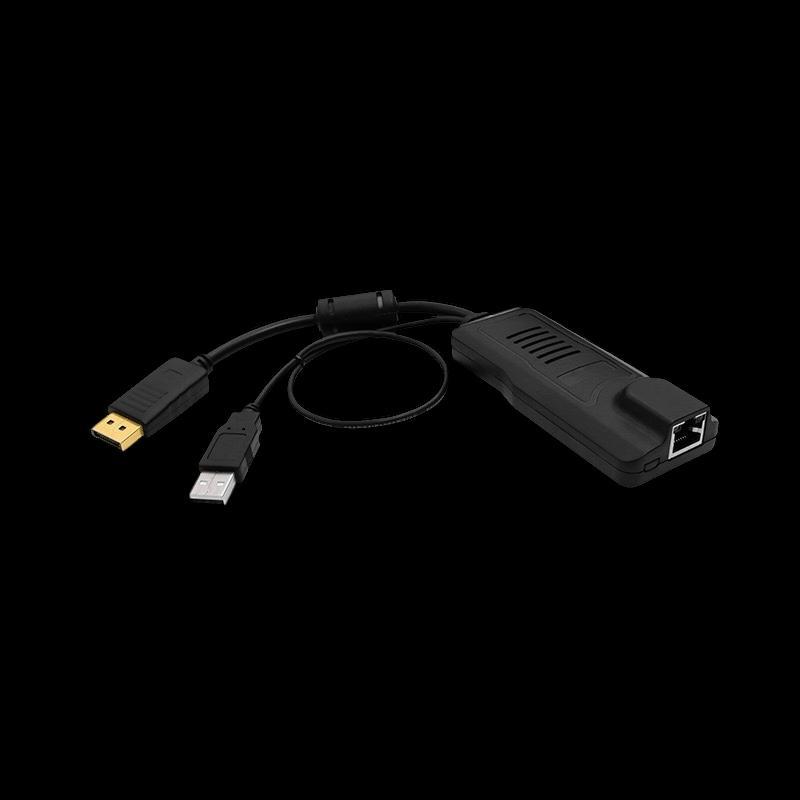

The Dongle-1200DP USB DisplayPort KVM Adapter Cable is used to connect the KVM switch to the video and USB ports of the target computer/server. The cable used to connect the dongle must be a Category 5e (shielded) CAT5/6 network cable.
Specification
Connector Input • USB 1x USB type A • DP 1x DisplayPort (male) Output • 1x RJ-45 (Female) LED • Connected Steady green light • Online Steady orange and green lights
Mechanical & Environment
Operation temperature • 0-50℃ Store Temperature -20-60℃ Humidity 0-80%RH, Non-condensing Material Plastic Cable Length DP: 150 mm (Including DP connector) USB: 300 mm Weight 90g Dimension 106mm x 45mm x 21.7mm
Ordering Information
Dongle-1200DP CAT5 Dongle to DP and USB Connection
