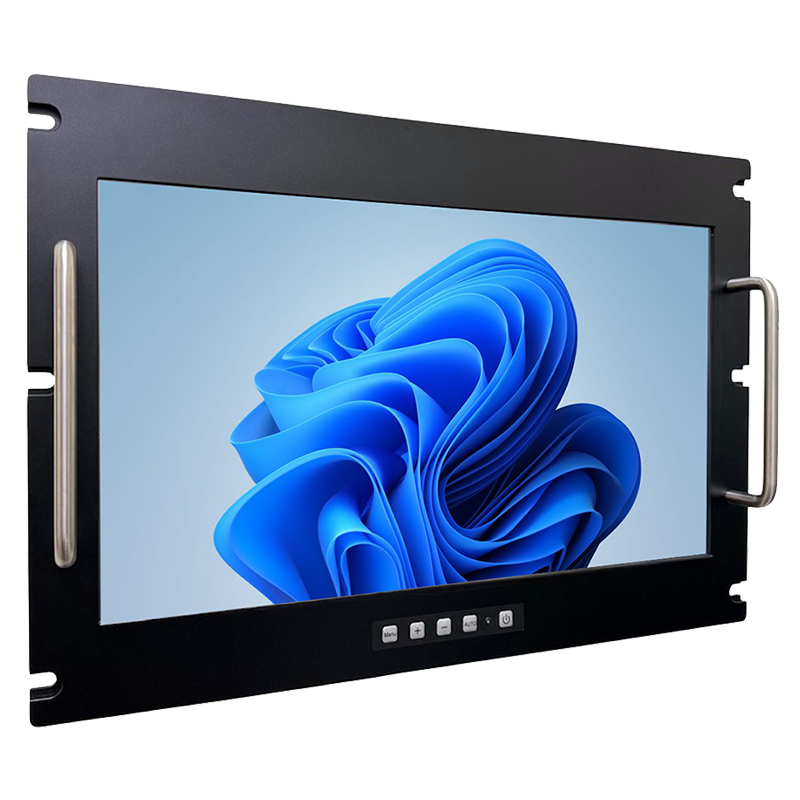

RK-185D4B

18.5" Industrial Rack Mount LCD Monitor with VGA, DVI, HDMI, Input with optional Resistive/ PCAP Touchscreen, Audio Speaker

Introduction Specification Ordering Information Datasheet

Features

⦁ 15" TFT LCD Panel Display
⦁ Input Interface: VGA/DVI/HDMI/Audio & Optional Speaker
⦁ Front Bezel Compliant with IP65 sealing
⦁ Front Bezel and Chassis constructed with Aluminium Alloy Material
⦁ Mounting Options: Rack Mount or VESA Wall Mount
⦁ Power Input: 12V DC Input, 48W AC/DC Power Adapter
⦁ Touch Screen: Resistive/PCAP Touch Screen

Introduction

I-View™ RK-185D4B Industrial Rack Mount TFT LCD Monitor with Optional Resistive Touchscreen. I-View™ RK-185D4B offer 3 different types of input options for different applications.
I-View™ RK-185D4B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.

Specification

LCD
Resolution
• 1920 x 1080 (FHD)
Brightness
• 250 cd/m2
Contrast Ratio
• 1200:1
Viewing Angle
• 178/178
Backlight
• LED
LCD Color
• 16.2M
Front Frame Material
• SECC
Chassis
• SECC
OSD Function
• Yes
Mounting
• Rack Mount/VESA
Colour
• Black

Touch Screen
Touchscreen Type
• Resistive/PCAP
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input
• 12 VDC
Power Supply
• AC 100 ~ 240V 50~60Hz Power Adapter (48W)

Mechanical & Environment

Dimension
• 379(W) x 303(H) x 57.8(D) mm
Weight
• Gross 5kg
Operation temperature
• 0°C to 60°C (32° F to 140° F)
Storage temperature
• -20°C to 80°C (-68° F to 176° F)
Relative humidity
• 5% to 95% (Non-Condensing)
Vibration
• 5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
• 10G acceleration peak to peak (11ms)
Front Bezel protection
• IP65

Ordering Information

RK-185D4B-C100
Industrial 18.5" TFT Rack Mount LCD Monitor (250cd/m²) with VGA/DVI/HDMI input and 12V Power Input

RK-185D4B-C101
Industrial 18.5" TFT Rack Mount LCD Monitor (250cd/m²) with VGA/DVI/HDMI input Resistive Touch screen (USB) and 12V Power Input

RK-185D4B-C102
Industrial 18.5" TFT Rack Mount LCD Monitor (250cd/m²) with VGA/DVI/HDMI input Resistive Touch screen (RS232) and 12V Power Input

RK-185D4B-C109
Industrial 18.5" TFT Rack Mount LCD Monitor (250cd/m²) with VGA/DVI/HDMI input Projective Capacitive Touch screen (USB) and 12V Power Input
