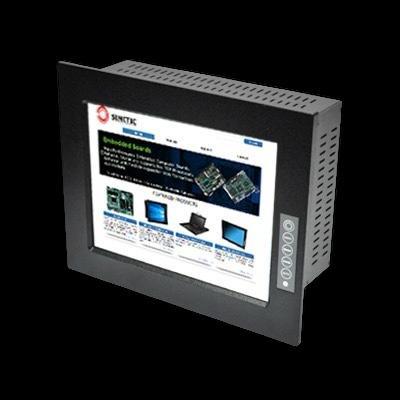

PM-121D1B

12.1" Industrial  Panel Mount LCD Touch Monitor with optional Resistive Touchscreen
Features

§ 12.1" TFT LCD Panel Display
§ Input Interface: VGA/DVI
§ Front Bezel Compliant with IP65 sealing
§ Front Bezel and Chassis constructed with Aluminium Alloy Material
§ Mounting Options: Panel Mount or VESA Wall Mount
§ Power Input: 12V DC Input, 48W AC/DC Power Adapter
§ Touch Screen: Resistive Touch Screen
Introduction
I-View™ PM-121D1B Industrial Panel Mount TFT LCD Monitor with Optional Resistive Touchscreen.  I-View™ PM-121D1B offer 2 different types of input options for different applications.
I-View™ PM-121D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.
Specification

LCD
Resolution
800x 600 (SVGA) (PM-121D1B & PM-121HD1B) ,
1024 x 768 (XGA) (PM-121HRD1B)
Brightness
300 cd/m2 (PM-121D1B)
450 cd/m2 (PM-121HD1B )
500 cd/m2 (PM-121HRD1B)
Contrast Ratio
600:1 (PM-121D1B),
700:1 (PM-121HD1B & PM-121HRD1B)
Viewing Angle
160/140 (PM-121D1B & PM-121HD1B)
160/160 (PM-121HRD1B)
Backlight
LED
LCD Color ­
262K/16.2M
Front Frame Material
Aluminium Alloy
Chassis
SECC
OSD Function
Yes
Mounting
Panel Mount/VESA
Colour
Black

Touch Screen
Touchscreen Type

• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input

12 VDC
Power Supply
AC 100 ~ 240V 50~60Hz Power Adapter (48W)

Mechanical & Environment
Dimension
323(W) x 262(H) x 57.8(D) mm
Weight
Gross 4kg
Operation temperature
0°C to 60°C (32° F to 140° F)
Storage temperature
-20°C to 80°C (-68° F to 176° F)
Relative humidity
5% to 95% (Non-Condensing)
Vibration
5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
10G acceleration peak to peak (11ms)
Front Bezel protection
IP65 Compliant
Ordering Information
PM-121D1B-C100
Industrial 12.1” TFT Panel Mount LCD Monitor (230cd/m2) with VGA/DVI input and 12V Power Input
PM-121D1B-C101
Industrial 12.1” TFT Panel Mount LCD Monitor (230cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-121D1B-C102
Industrial 12.1” TFT Panel Mount LCD Monitor(230cd/m2) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-121HD1B-C100
Industrial 12.1” TFT Panel Mount LCD Monitor (450cd/m2)with VGA/DVI input and 12V Power Input
PM-121HD1B-C101
Industrial 12.1” TFT Panel Mount LCD Monitor (400cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-121HD1B-C102
Industrial 12.1” TFT Panel Mount LCD Monitor (400cd/m2)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-121HRD1B-C100
Industrial 12.1” TFT Panel Mount LCD Monitor (400cd/m2)with VGA/DVI input and 12V Power Input
PM-121HRD1B-C101
Industrial 12.1” TFT Panel Mount LCD Monitor (400cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-121HRD1B-C102
Industrial 12.1” TFT Panel Mount LCD Monitor (400cd/m2)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
