Features

§ 8.4" TFT LCD Panel Display
§ Input Interface: VGA/DVI
§ Front Bezel Compliant with IP65 sealing
§ Front Bezel and Chassis constructed with Aluminium Alloy Material
§ Mounting Options: Panel Mount or VESA Wall Mount
§ Power Input: 12V DC Input, 48W AC/DC Power Adapter
§ Touch Screen: Resistive Touch Screen

Introduction

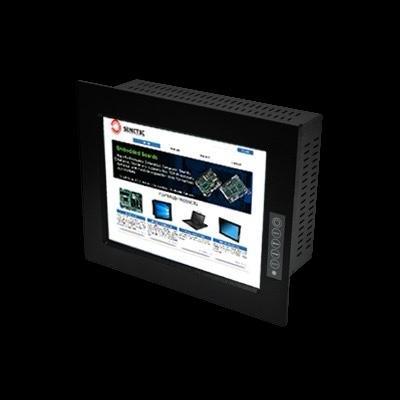

I-View™ PM-084D1B Industrial Panel Mount TFT LCD Monitor with Optional Resistive Touchscreen. I-View™ PM-084 offer 2 different types of input options for different applications.
I-View™ PM-084D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.

Specification

LCD
Resolution
800x 600 (VGA)
Brightness
250 cd/m² (PM-084D1B) or 450 cd/m² (PM-084HD1B)
Contrast Ratio
600:1
Viewing Angle
160/140
Backlight
LED
LCD Color
262K
Front Frame Material
Aluminium Alloy
Chassis
SECC
OSD Function
Yes
Mounting
Panel Mount/VESA
Colour
Black

Touch Screen
Touchscreen Type
• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input
12 VDC
Power Supply
AC 100 ~ 240V 50~60Hz Power Adapter (48W)

Mechanical & Environment
Dimension
225.5(W) x 213(H) x 57.8(D) mm
Weight
~ Gross 2.5kg
Operation temperature
0°C to 60°C (32° F to 140° F)
Storage temperature
-20°C to 80°C (-68° F to 176° F)
Relative humidity
5% to 95% (Non-Condensing)
Vibration
5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
10G acceleration peak to peak (11ms)
Front Bezel protection
IP65 Compliant

Ordering Information
PM-084D1B-C100
Industrial 8.4” TFT Panel Mount LCD Monitor (250cd/m²) with VGA/DVI input and 12V Power Input
PM-084D1B-C101
Industrial 8.4” TFT Panel Mount LCD Monitor (250cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-084D1B-C102
Industrial 8.4” TFT Panel Mount LCD Monitor(250cd/m²) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-084HD1B-C100
Industrial 8.4” TFT Panel Mount LCD Monitor (450cd/m²)with VGA/DVI input and 12V Power Input
PM-084HD1B-C101
Industrial 8.4” TFT Panel Mount LCD Monitor (450cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-084HD1B-C102
Industrial 8.4” TFT Panel Mount LCD Monitor (450cd/m²)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
