PM-SH173-C109

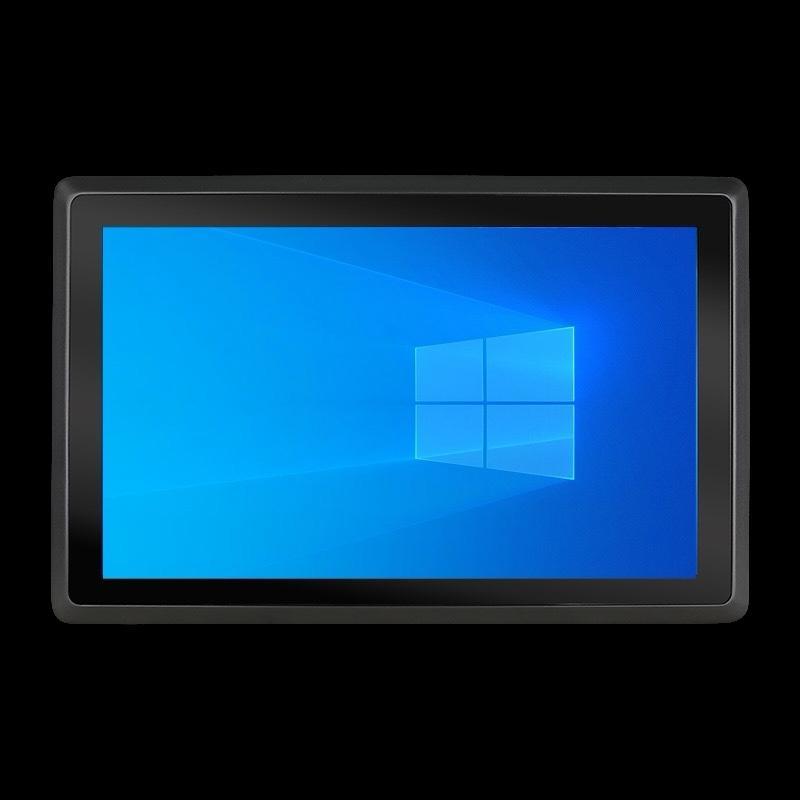

17.3" Industrial  Panel Mount LCD Touch Monitor with 10 Point PCAP USB Touchscreen
Features

§ 17.3" TFT LCD Panel Display

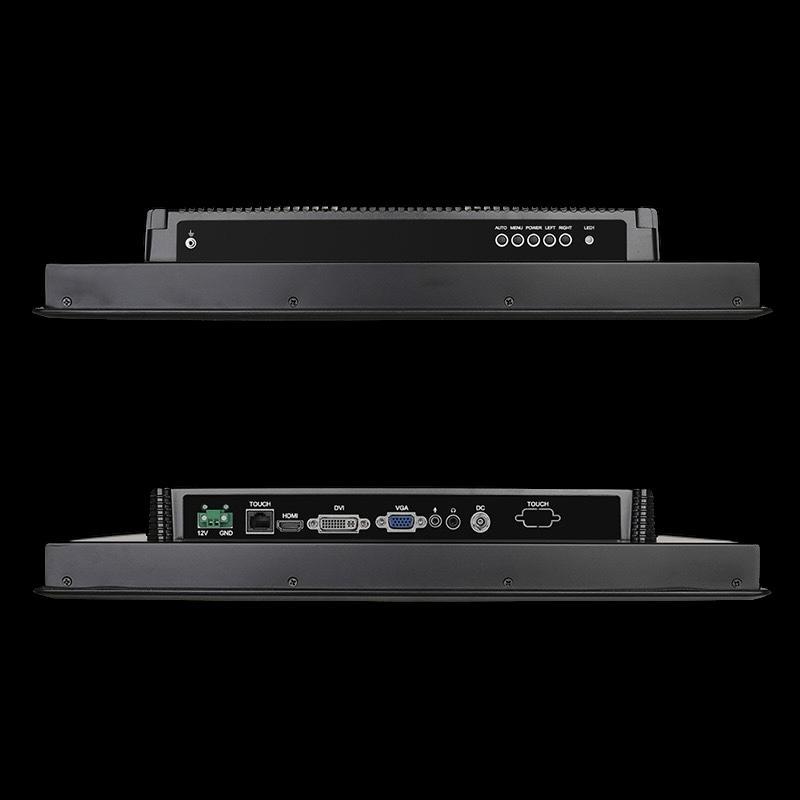

§ Input Interface: VGA/DVI/HDMI
§ Front Bezel Compliant with IP65 sealing
§ Front Bezel and Chassis constructed with Aluminium Alloy Material

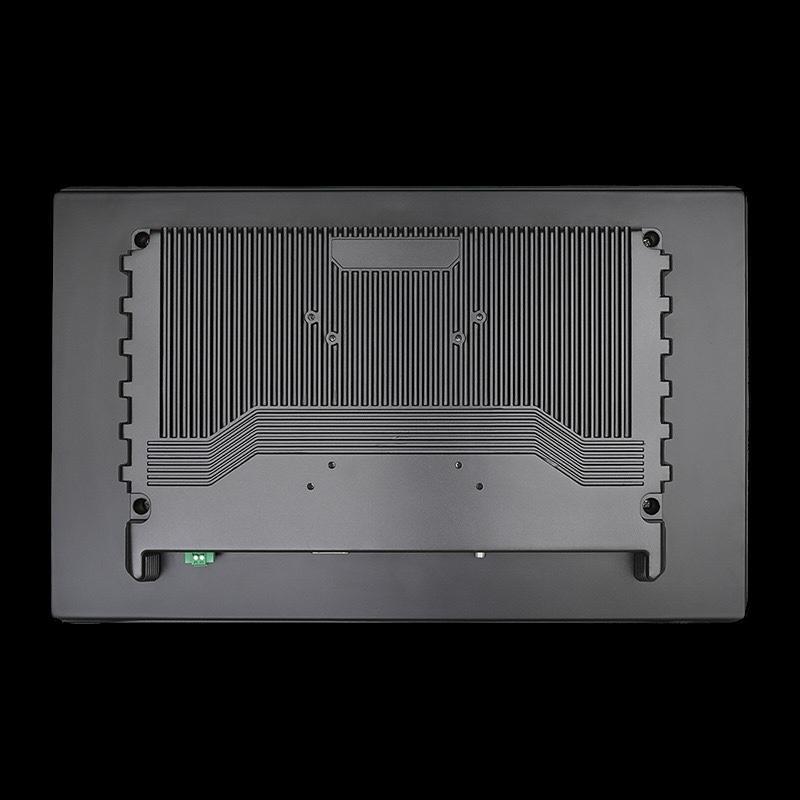

§ Mounting Options: Panel Mount or VESA Wall Mount
§ Power Input: 12~24V DC Input, 60W AC/DC Power Adapter
§ Touch Screen: Multi Touch PCAP USB Touch Screen
Introduction
I-View™ PM-SH173-C109 Industrial Panel Mount TFT LCD Monitor with Multi Touch PCAP Touchscreen.  I-View™ PM-SH173 offer 3 different types of input options for different applications.
I-View™ PM-SH173-C109 is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.
Specification

LCD
Resolution
1920x1080
Brightness
400 cd/m2
Contrast Ratio
600:1
Viewing Angle
160/140
Backlight
LED
LCD Color
262K/16.2M
Front Frame Material
Aluminium Alloy
Chassis
Aluminium Alloy
OSD Function
Yes
Mounting
Panel Mount/VESA
Colour
Black

Touch Screen
Touchscreen Type

• Project Capacitive Touch (10 points)
Touchscreen Interface
• USB
Touch response time
• 2ms
Luminousness
• 90%
Surface Hardness
• 7H
MTBF
• >50 million times

Power Requirement
DC Input

12~24 VDC
Power Supply
AC 100 ~ 240V 50~60Hz Power Adapter (60W)

Mechanical & Environment
Dimension
452(W) x 285(H) x 70.5(D) mm
Weight
~ Gross 3.5kg
Operation temperature
-10°C to 60°C (14° F to 140° F)
Storage temperature
-20°C to 70°C (-4° F to 178° F)
Relative humidity
5% to 95% (Non-Condensing)
Vibration
5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
10G acceleration peak to peak (11ms)
Front Bezel protection
IP65 Compliant
Ordering Information
PM-SH173-C109
Industrial 17.3” TFT Panel Mount LCD Monitor with 10 Point PCAP Touchscreen /VGA/DVI/HDMI input and 12~24V Power Input
