Features

⦁ 12.1" TFT LCD Panel Display
⦁ Input Interface: VGA/DVI
⦁ Front Bezel Compliant with IP65 sealing
⦁ Chassis constructed with SECC Material
⦁ Mounting Options: Open Frame or VESA Wall Mount
⦁ Power Input: 12V DC Input, 48W AC/DC Power Adapter
⦁ Touch Screen: Resistive Touch Screen

Introduction

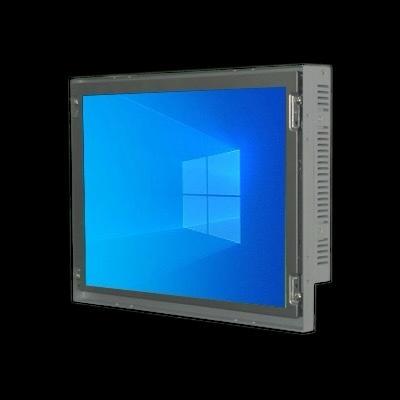

I-View™ OF-121D1B Industrial Open Frame TFT LCD Monitor with Optional Resistive Touchscreen. I-View™ OF-121D1B offer 2 different types of input options for different applications.
I-View™ OF-121D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.

Specification

LCD
Resolution
• 800x 600 (SVGA) (OF-121D1B & OF-121HD1B) ,
• 1024 x 768 (XGA) (OF-121HRD1B)
Brightness
• 300 cd/m2 (OF-121D1B)
• 450 cd/m2 (OF-121HD1B )
• 500 cd/m2 (OF-121HRD1B)
Contrast Ratio
• 600:1 (OF-121D1B),
• 700:1 (OF-121HD1B & OF-121HRD1B)
Viewing Angle
• 160/140 (OF-121D1B & OF-121HD1B),
• 160/160 (OF-121HRD1B)
Backlight
• LED
LCD Color
• 262K/16.2M
Front Frame Material
• Aluminium Alloy
Chassis
• SECC
OSD Function
• Yes
Mounting
• Open Frame/VESA
Colour
• Black

Touch Screen
Touchscreen Type
• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input
• 12 VDC
Power Supply
• AC 100 ~ 240V 50~60Hz Power Adapter (48W)

Mechanical & Environment

Dimension
• 287(W) x 225(H) x 41(D) mm
Weight
• Gross 3.5kg
Operation temperature
• 0°C to 60°C (32° F to 140° F)
Storage temperature
• -20°C to 80°C (-68° F to 176° F)
Relative humidity
• 5% to 95% (Non-Condensing)
Vibration
• 5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
• 10G acceleration peak to peak (11ms)
Front Bezel protection
• IP65 CompliantIP65 Compliant

Ordering Information

OF-121D1B-C100
Industrial 12.1” TFT Open Frame LCD Monitor (300cd/m²) with VGA/DVI input and 12V Power Input

OF-121D1B-C101
Industrial 12.1” TFT Open Frame LCD Monitor (300cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input

OF-121D1B-C102
Industrial 12.1” TFT Open Frame LCD Monitor(300cd/m²) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input

OF-121HD1B-C100
Industrial 12.1” TFT Open Frame LCD Monitor (400cd/m²)with VGA/DVI input and 12V Power Input

OF-121HD1B-C101
Industrial 12.1” TFT Open Frame LCD Monitor (400cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input

OF-121HD1B-C102
Industrial 12.1” TFT Open Frame LCD Monitor (400cd/m²)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input

OF-121HRD1B-C100
Industrial 12.1” TFT Open Frame LCD Monitor (500cd/m²)with VGA/DVI input and 12V Power Input

OF-121HRD1B-C101
Industrial 12.1” TFT Open Frame LCD Monitor (500cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input

OF-121HRD1B-C102
Industrial 12.1” TFT Open Frame LCD Monitor (500cd/m²)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
