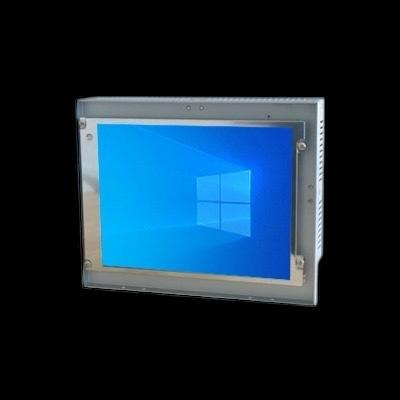

OF-104D1B

10.4" Industrial  Open Frame LCD Touch Monitor with optional Resistive Touchscreen
Features

§ 10.4" TFT LCD Panel Display
§ Input Interface: VGA/DVI
§ Front Bezel Compliant with IP65 sealing
§ Front Bezel and Chassis constructed with Aluminium Alloy Material
§ Mounting Options: Open Frame or VESA Wall Mount
§ Power Input: 12V DC Input, 48W AC/DC Power Adapter
§ Touch Screen: Resistive Touch Screen
Introduction
I-View™ OF-104D1B Industrial Open Frame TFT LCD Monitor with Optional Resistive Touchscreen.  I-View™ OF-104D1B offer 2 different types of input options for different applications.
I-View™ OF-104D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.
Specification

LCD
Resolution
800x 600 (SVGA) (OF-104D1B & OF-104HD1B) , 1024 x 768 (XGA) (OF-104HRD1B)
Brightness
230 cd/m2 (OF-104D1B) or 400 cd/m2 (OF-104HD1B & PM104HRD1B)
Contrast Ratio
500:1 (OF-104D1B), 700:1 (OF-104HD1B), 3000:1 (OF-104HRD1B)
Viewing Angle
160/130 (OF-104D1B & PM104HD1B),  178/178 (OF-104HRD1B)
Backlight
LED
LCD Color ­
262K/16.2M
Front Frame Material
Aluminium Alloy
Chassis
SECC
OSD Function
Yes
Mounting
Open Frame/VESA
Colour
Black

Touch Screen
Touchscreen Type

• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input

12 VDC
Power Supply
AC 100 ~ 240V 50~60Hz Power Adapter (48W)

Mechanical & Environment
Dimension
252(W) x 167(H) x 39(D) mm
Weight
Gross 3kg
Operation temperature
0°C to 60°C (32° F to 140° F)
Storage temperature
-20°C to 80°C (-68° F to 176° F)
Relative humidity
5% to 95% (Non-Condensing)
Vibration
5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
10G acceleration peak to peak (11ms)
Front Bezel protection
IP65 Compliant
Ordering Information
OF-104D1B-C100
Industrial 10.4” TFT Open Frame LCD Monitor (230cd/m2) with VGA/DVI input and 12V Power Input
OF-104D1B-C101
Industrial 10.4” TFT Open Frame LCD Monitor (230cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
OF-104D1B-C102
Industrial 10.4” TFT Open Frame LCD Monitor(230cd/m2) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
OF-104HD1B-C100
Industrial 10.4” TFT Open Frame LCD Monitor (400cd/m2)with VGA/DVI input and 12V Power Input
OF-104HD1B-C101
Industrial 10.4” TFT Open Frame LCD Monitor (400cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
OF-104HD1B-C102
Industrial 10.4” TFT Open Frame LCD Monitor (400cd/m2)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
OF-104HRD1B-C100
Industrial 10.4” TFT Open Frame LCD Monitor (400cd/m2)with VGA/DVI input and 12V Power Input
OF-104HRD1B-C101
Industrial 10.4” TFT Open Frame LCD Monitor (400cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
OF-104HRD1B-C102
Industrial 10.4” TFT Open Frame LCD Monitor (400cd/m2)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
