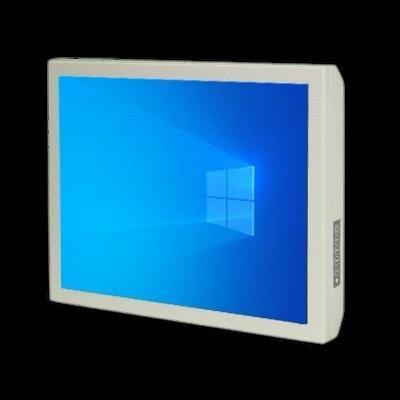

ML-V190D1B

19" Industrial Wall Mount LCD Touch Monitor with optional Resistive Touchscreen

Introduction Specification Ordering Information Datasheet

Features

⦁ 19" TFT LCD Panel Display
⦁ Input Interface: VGA/DVI
⦁ Front Bezel and Chassis constructed with SECC Material
⦁ Mounting Options: VESA Wall Mount
⦁ Power Input: 12V DC Input, 48W AC/DC Power Adapter
⦁ Touch Screen: Resistive Touch Screen

Introduction

I-View™ ML-V190D1B Industrial Wall Mount TFT LCD Monitor with Optional Resistive Touchscreen. I-View™ ML-V190D1B offer 2 different types of input options for different applications.
I-View™ ML-V190D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.

Specification

LCD
Resolution
• 1280 x 1024 (SXGA)
Brightness
• 350 cd/m2
Contrast Ratio
• 1000:1
Viewing Angle
• 170/160
Backlight
• LED
LCD Color
• 16.7M
Front Frame Material
• SECC
Chassis
• SECC
OSD Function
• Yes
Mounting
• Wall Mount/VESA
Colour
• Black

Touch Screen
Touchscreen Type
• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input
• 12 VDC
Power Supply
• AC 100 ~ 240V 50~60Hz Power Adapter (48W)

Mechanical & Environment

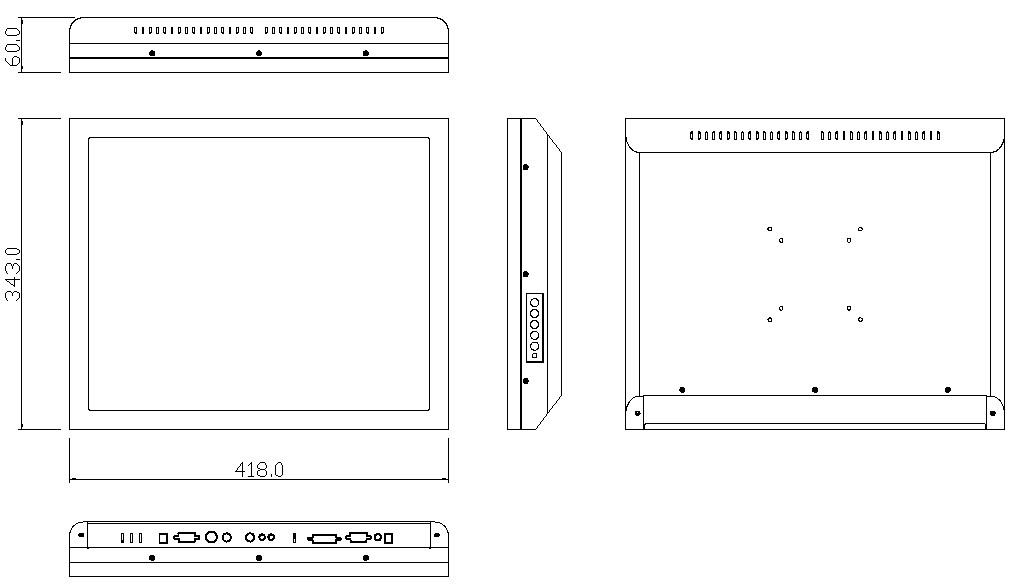

Dimension
• 418(W) x 343(H) x 60(D) mm
Weight
• Gross 5.5kg
Operation temperature
• 0°C to 60°C (32° F to 140° F)
Storage temperature
• -20°C to 80°C (-68° F to 176° F)
Relative humidity
• 5% to 95% (Non-Condensing)
Vibration
• 5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
• 10G acceleration peak to peak (11ms)
Front Bezel protection
• -

Ordering Information

ML-V190D1B-C100
Industrial 19” TFT Wall Mount LCD Monitor (350cd/m²) with VGA/DVI input and 12V Power Input

ML-V190D1B-C101
Industrial 19” TFT Wall Mount LCD Monitor (350cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input

ML-V190D1B-C102
Industrial 19” TFT Wall Mount LCD Monitor(350cd/m²) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
