Features

17" TFT LCD Chassis Display
Input Interface: VGA/DVI
Front Bezel and Chassis constructed with SECC Material
Mounting Options: Chassis Mount or VESA Wall Mount
Power Input: 12V DC Input, 60W AC/DC Power Adapter
Touch Screen: Resistive Touch Screen

Introduction

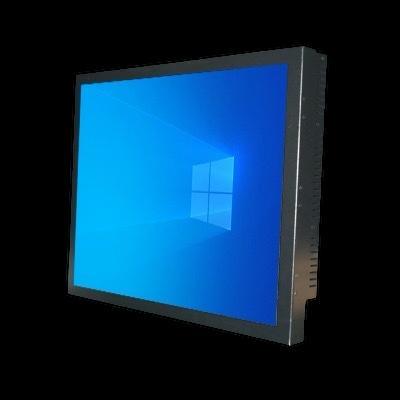

I-View™ AL-170D1B Industrial Chassis Mount TFT LCD Monitor with Optional Resistive Touchscreen. I-View™ AL-170D1B offer 2 different types of input options for different applications.
I-View™ AL-170D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.

Specification

LCD
Resolution
1280 x 1024 (SXGA)
Brightness
350 cd/m²
Contrast Ratio
1000:1
Viewing Angle
160/140
Backlight
LED
LCD Color
16.7M
Front Frame Material
SECC
Chassis
SECC
OSD Function
Yes
Mounting
Chassis Mount/VESA
Colour
Black

Touch Screen
Touchscreen Type
• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input
12 VDC
Power Supply
AC 100 ~ 240V 50~60Hz Power Adapter (60W)

Mechanical & Environment
Dimension
378(W) x 310(H) x 55.2(D) mm
Weight
Gross 8kg
Operation temperature
0°C to 60°C (32° F to 140° F)
Storage temperature
-20°C to 80°C (-68° F to 176° F)
Relative humidity
5% to 95% (Non-Condensing)
Vibration
5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
10G acceleration peak to peak (11ms)
Front Bezel protection
-

Ordering Information
AL-170D1B-C100
Industrial 17” TFT Chassis Mount LCD Monitor (350cd/m²) with VGA/DVI input and 12V Power Input
AL-170D1B-C101
Industrial 17” TFT Chassis Mount LCD Monitor (350cd/m²)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
AL-170D1B-C102
Industrial 17” TFT Chassis Mount LCD Monitor(350cd/m²) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
