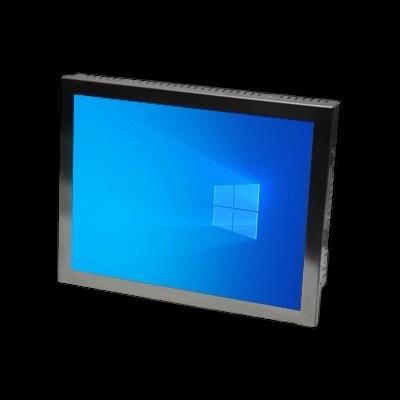

AL-150D1B

15" Industrial  Chassis Mount LCD Touch Monitor with optional Resistive Touchscreen
Features

15" TFT LCD Chassis Display
Input Interface: VGA/DVI
Front Bezel and Chassis constructed with SECC Material
Mounting Options: Chassis Mount or VESA Wall Mount
Power Input: 12V DC Input, 60W AC/DC Power Adapter
Touch Screen: Resistive Touch Screen
Introduction
I-View™ AL-150D1B Industrial Chassis Mount TFT LCD Monitor with Optional Resistive Touchscreen.  I-View™ AL-150D1B offer 2 different types of input options for different applications.
I-View™ AL-150D1B is ideal for developing KIOSK, Industrial Test Equipment, Industrial Control systems, Hospital Display, Marine, Defence and ATMs.
Specification

LCD
Resolution
1024 x 768 (XGA)
Brightness
300 cd/m2 (AL-150D1B)
450 cd/m2 (PM-150HD1B )
Contrast Ratio
700:1
Viewing Angle
160/150
Backlight
LED
LCD Color ­
16.2M
Front Frame Material
SECC
Chassis
SECC
OSD Function
Yes
Mounting
Chassis Mount/VESA
Colour
Black

Touch Screen
Touchscreen Type
• Resistive
Touchscreen Interface
• USB/RS-232

Power Requirement
DC Input
12 VDC
Power Supply
AC 100 ~ 240V 50~60Hz Power Adapter (60W)

Mechanical & Environment
Dimension
347(W) x 273(H) x 50.4(D) mm
Weight
Gross 7kg
Operation temperature
0°C to 60°C (32° F to 140° F)
Storage temperature
-20°C to 80°C (-68° F to 176° F)
Relative humidity
5% to 95% (Non-Condensing)
Vibration
5-19Hz 1.0mm amplitude displacement, 19-200Hz/1.0g Acceleration peak to peak.
Shock
10G acceleration peak to peak (11ms)
Front Bezel protection
IP65 Compliant
Ordering Information
AL-150D1B-C100
Industrial 15” TFT Chassis Mount LCD Monitor (300cd/m2) with VGA/DVI input and 12V Power Input
AL-150D1B-C101
Industrial 15” TFT Chassis Mount LCD Monitor (300cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
AL-150D1B-C102
Industrial 15” TFT Chassis Mount LCD Monitor(300cd/m2) with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-150HD1B-C100
Industrial 15” TFT Chassis Mount LCD Monitor (450cd/m2)with VGA/DVI input and 12V Power Input
PM-150HD1B-C101
Industrial 15” TFT Chassis Mount LCD Monitor (400cd/m2)with USB Resistive Touchscreen /VGA/DVI input and 12V Power Input
PM-150HD1B-C102
Industrial 15” TFT Chassis Mount LCD Monitor (400cd/m2)with RS-232 Resistive Touchscreen /VGA/DVI input and 12V Power Input
