Features
Support for Win 11/10 system
Intel® Core™ i5-1235U/i7-1255U 12th Gen Processors
The fuselage is equipped with dual battery design and increase endurance to 6-8 Hours
IP65 high protection level, in accordance with MIL-STD-810H
Support WiFi 6, BT 5.1, M.2 interface 5G/4G selection
Support 1920x1080 FHD, optional with Corning gorilla screen
Support rich expansion slot and fingerprint design, can be applied to various complex industry needs an expand demand
XtremeBook X56A
15.6" Rugged 12th Generation Processor based Notebook
Specification
System
Processor
• Intel® Core™ i7-1255U 12th Gen Processor
• Optional Intel® Core™ i5-1235U 12th Gen Processor
OS Support
• Windows 11/10
Memory
• 16Gb/32GB
Storage
• 256GB/512GB
LCD
• 15.6” FHD 16:9, 1920x1080, 1000nits
Touch Panel
• Optional 10-point capacitive screen,
• Hardness 7H, Scratch Resistance
• Supports Glove Touch
Camera
• Front 5.0MP

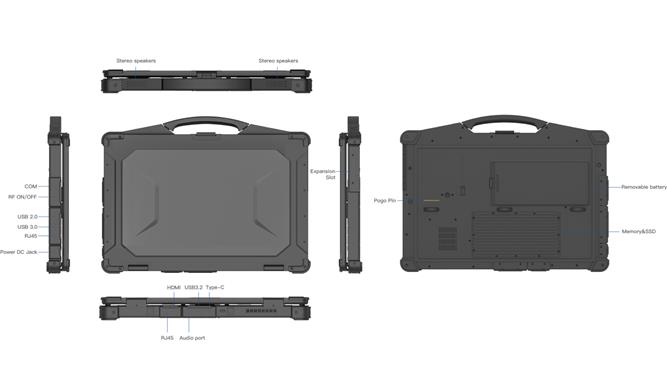

I/O
• USB3.2 x1, USB3.0 x1, USB2.0 x1
• TYPE-C, Support thunderbolt 4
• HDMI 2.0a mini x1
• SIM x1, TF x1
• DB9 (RS232) x1, RJ45 x2
• ∮3.5mm Standard Earphone Jack x1
• DC19V/3.78A Power port x1
• Anti-theft Lock Slot x1, Right-side Cooling Vent x1
• Left-side expansion slot, optional M.2-2280 PCIe interface x1, supports SSD; Optional: M.2, E-KEY, PCIE interface x1 for custom modules.
• Optional: 12PIN Pogo Pin (USB & charging) x1
Power
• AC100V ~ 240V, Output DC 19V/3.78A/71.82W output US Standard (Optional EU Standard)
Color
• Black
Communication
WIFI
• Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
Bluetooth
• BT5.1(BLE) class 1
• Transmission distance: 10m
4G
• 4G Optional M.2 European Standard
• LTE-FDD: B1/3/5/7/8/20/28
• LTE-TDD: B38/40/41
5G
• 5G Optional M.2
• 5G NR
• NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/
• 40/41/48/66/70/ 71/75/76/77/78/79/
• SA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/
• 40/41/48/ 66/70/71/75/76/77/78/79
• LTE
• LTE-FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/
• 28/29/30/32/66/71
• LTE-TDD B34/38/39/40/41/42/43/48
• LAA B46
• UMTS WCDMA B1/2/4/5/8/19
GNSS
• Supports single GPS or single Glonass, default GPS
Battery
Small Battery
• 11.1V/1300mAh
• Built in Li_polyment,battery loadable
• 1.5hrs (Default 50% volume, 200 lumens brightness, playing 1080P HD video)
Large Battery
• 11.55V/4850mAh
• Li_polyment, removeable battery
• 7.5hrs (Playing 1080P HD video, Conditions: System in balance mode, 320 lumens, 70 dB at 10cm, WiFi and Bluetooth turned off.)
Data Collection
Fingerprint
• SPI Fingerprint (Power on Login)
Keyboard
• US Layout Keyboard with Backlight
NFC
• Optional, 13.56MHz, ISO/IEC 14443A/B,
• ISO/IEC 15693, ISO/IEC 18092
Mechanical & Reliability
Dimension
• 407 x 305.8 x 45.5mm
Weight
• 2970g
Operating Temperature
• -20 °C ~ 60 °C
Storage Temperature
• -30 °C ~ 70 °C
Humidity
• 95% Non-Condensing
Rugged Feature
• IP65 certified, MIL-STD-810H certified
Drop Height
• 1.2m
