Rack Mount KVM Switch (HDMI)

SINETIC Rack Mount KVM Switch (HDMI) switch allows access and control up to 8/16 computers from a single console (keyboard, mouse and monitor). As many as 256/512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches. The KVM switch supports USB/HDMI connections for the console and computers.

KVM-RK08H

1U 19” Rack Mount 8 Ports HDMI KVM Switch

Introduction Specification Ordering Information Datasheet

Features

⦁ One single device control 8 HDMI computers
⦁ Support wide-screen resolution
⦁ Fully complied with HDCP
⦁ Support HDMI 1.4a
⦁ Computer selection via front panel pushbuttons, hotkeys
⦁ Broadcast mode - keyboard operations simultaneously performed on all selected computers
⦁ Easily select servers with mouse
⦁ Multi-platform - Windows, Linux, Mac, Unix
⦁ Complete keyboard emulation for error-free booting
⦁ Support gaming, multi-media, wireless keyboard and mouse.
⦁ Auto scan mode for monitoring all computers
⦁ Support hot-plugging
⦁ Support firmware upgraded

Introduction

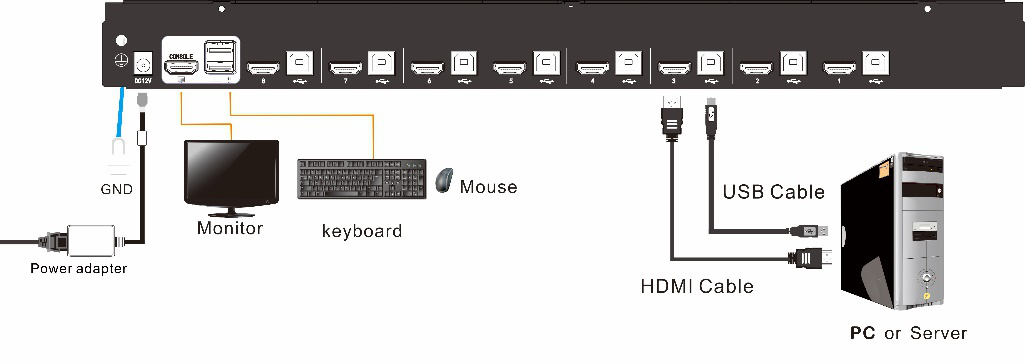

The KVM-RK08H 8-port HDMI KVM Switch is a multi-purpose device that consolidates access and control up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console. It’s easy to set up the KVM-RK08H HDMI KVM switch, just plug the cable into the appropriate port, no software needed to be set up, no complicated installation procedures are involved, and no compatibility issues needed to be considered.

Specification

Connections
Connections
⦁ 8
Max Computer Connection
⦁ 8
Port Selection
⦁ Pushbutton, Hotkey
Console ( monitor keyboard mouse )
⦁ 1x HDMI Type A
⦁ 2x USB type A
KVM
⦁ 8x HDMI Type A
⦁ 8x USB Type B
Switch ( Port Selection )
⦁ 8x buttons
LED indicator
⦁ Online : 8* (green)
⦁ Selected : 8* (orange)
⦁ Port Display : 2*7- Segment (orange)
I/R value
⦁ DC 12V ; 0.5A
Resolution
⦁ 1920x1080@60Hz
Consumption
⦁ 5W
Emulation
⦁ keyboard/mouse ( PS/2 ,USB )

Mechanical & Environment

Operation temperature
• 0°C to 40°C
Storage temperature
• 20°C to 60°C
Relative humidity
• 0% to 80% (Non-Condensing)
Material
• SECC
Weight
2.7kg Net
Dimension
440mmx169mmx43mm
Packaging
• 512mm x 152mm x 252mm
