Introduction

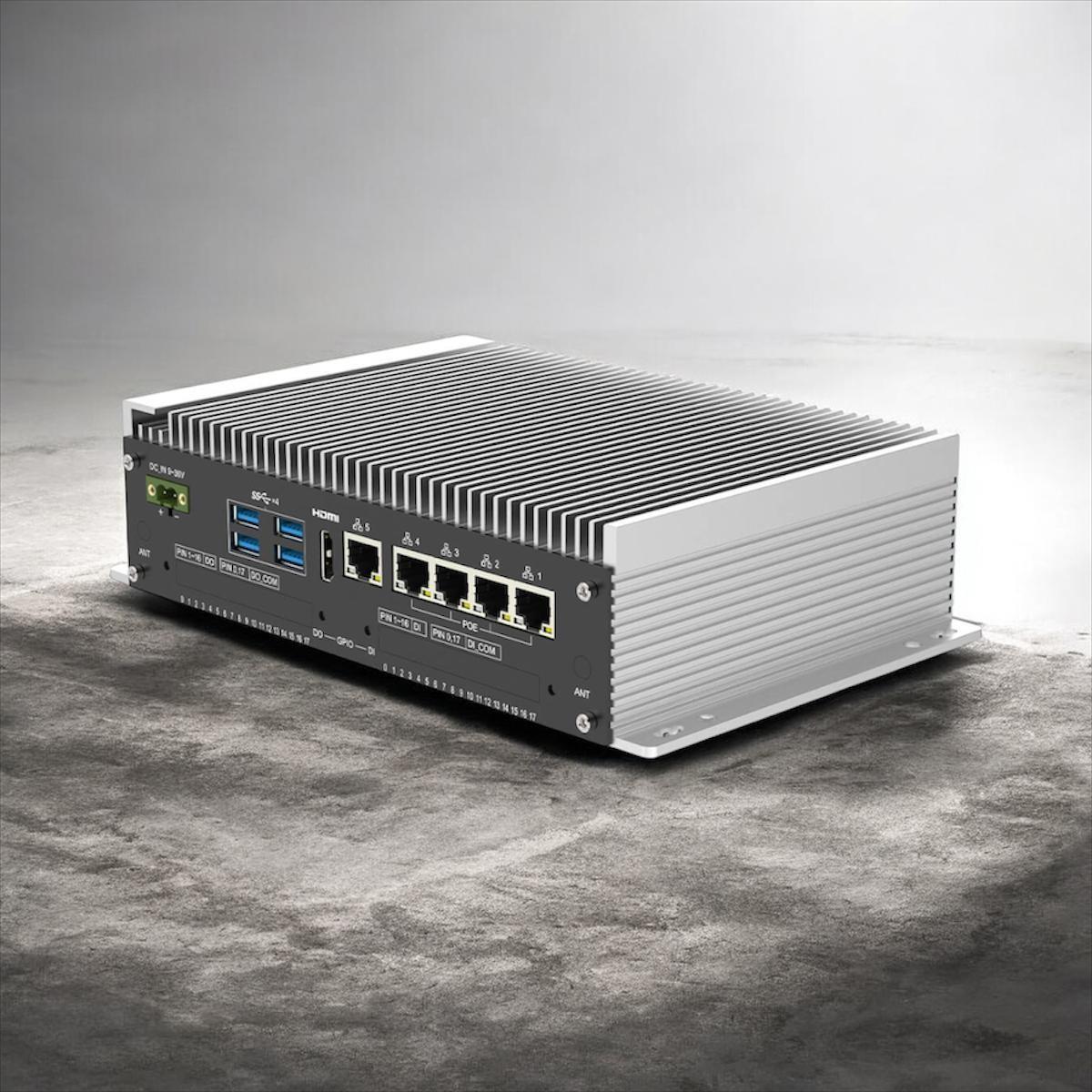

The SINETIC iSBX-TS3000-12XXU series has been upgraded to the latest Intel® 12th Gen Alder Lake-U Core™ i3/i5/i7 platforms, delivering significantly enhanced performance and efficiency. The iSBX-TS3000-12XXU is a newly released fanless industrial Vision Box PC powered by the Intel® Core™ i7/i5/i3 processor, purpose-built for machine vision and industrial networking applications that demand high computing power and reliable connectivity.

Designed with extensive I/O capabilities, the system features 5× Gigabit LAN ports (4× with PoE support), 4× USB 3.1 ports, 2× USB 2.0 ports, 1× RS232, and 1× RS485. An optional 32× GPIO configuration (TBOX-3D30D model) further enhances flexibility for customized industrial control applications. The wide-range 9-36V DC power input, combined with over-current, over-voltage, and reverse-polarity protection, ensures stable and secure operation in demanding industrial environments.

Built with a fully sealed, fanless enclosure, the iSBX-TS3000-12XXU effectively prevents dust intrusion while ensuring reliable long-term operation. Its rugged design makes it ideal for continuous use in harsh environments, including intelligent transportation systems, machine vision inspection, medical equipment, textile machinery, rail transit, and industrial automation.

Specification

System
Processor
• Intel 12th Gen. Core i3-1215U processor 6C/8T 1.20Ghz
• Intel 12th Gen. Core i5-1235U processor 10C/12T, 1.20Ghz
• Intel 12th Gen. Core i7-1255U processor 10C/12T, 1.70Ghz
• TDP 15W
BIOS
• SPI AMI EEI BIOS
Memory
• SO-DIMM, DDR5-4800 Mhz, Dual channels, Max. up to 64GB
Storage
• 1x M.2 M-Key 2280 (PCIe x4 Gen.IV, NVMe) slot SSD, Optional support 1x 2.5” SATA III SSD
Graphic
• Intel Iris Xe Graphics eligible (Up to 80 EUs, 1.25Ghz)
Network
• 5x Intel I226V
Audio
• On-board Realtek ACL897 Audio controller
Expansion
• 1x Full length Mini-PCIe (Default), or 1x M.2 2230 E-key
TPM
• Intel® PTT TPM2.0
Watchdog
• 0~255 seconds programmable
Operating system
• Win10, Win11, Linux

IO Interface
COM
• COM1: RS232; COM2: RS485
Network
• 5x RJ45, 10/100/1000 Mbps, LAN1~LAN4 support PoE 802.3AF (Single port max. up to 15.4W, total less than 45W)
Audio
• 1x Mic-in/Line-out (2 in 1, 3.5mm Jack)
USB
• 4x USB3.1, 2x USB2.0
Display
• 1x HDMI, 1x VGA
Power Input
• 1x 2 pin, Phoenix terminal
GPIO
• 32x GPIO (16x DI, 16x DO, with isolated)

Structure
Structure and surface
• Aluminium alloy, anodizing and anti-scratch treatment
Cooling System
• Finned aluminium heatsinks
Color
• Silver + Black
Indicator
• Power Switch/ Power LED/ HDD LED
Mounting
• Desktop, wall mount, optional with Din-rail mount
Dimension
• 236.5 x 150.0 x 60.0 (mm)
Net weight
• About 1.6 Kg

Mechanical & Environment

Voltage Input
• DC terminal 9~36V range
Power Consumption
• 25W
EMC
• CE/FCC/RoHS
Working temperature
• -20 ~ + 60 (℃)
Storage temperature
• -40 ~ + 70 (℃)
Relative humidity
• 10~95%@10℃（No condensation）
Vibration
• 50~500Hz,1.5G,0.15mm peak to peak
Shock
• 10G/Peak (11 ms)

Ordering Information

iSBX-TS3000-1215
Intel® Alder Lake 12th Gen Core i3-1215U processor, Fanless Embedded Computer with 1x HDMI / 1x VGA/ 6x USB / 2x COM/ 5x GIGA LAN/DC 9~36 V Input

iSBX-TS3000-1235
Intel® Alder Lake 12th Gen Core i5-1235U processor, Fanless Embedded Computer with 1x HDMI / 1x VGA/ 6x USB / 2x COM/ 5x GIGA LAN/DC 9~36 V Input

iSBX-TS3000-1255
Intel® Alder Lake 12th Gen Core i7-1255U processor, Fanless Embedded Computer with 1x HDMI / 1x VGA/ 6x USB / 2x COM/ 5x GIGA LAN/DC 9~36 V Input
