Introduction

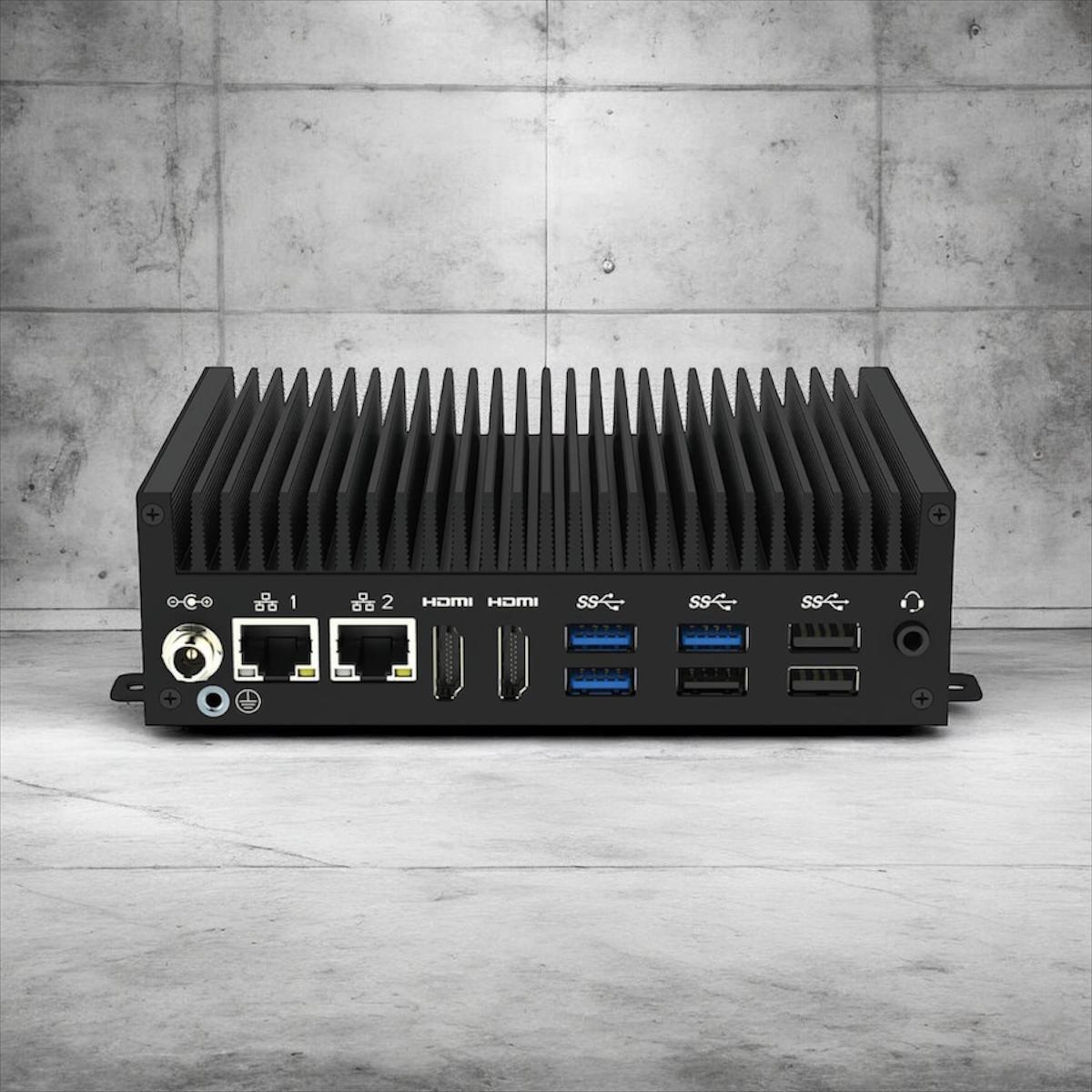

iSBX-TS1010-J6412A is a new palm-sized fanless Box PC model, it adapts Intel® Elkhart Lake J6412 Quad-core CPU, having advanced computing performance and low power consumption. iSBX-TS1010-J6412A storage can support 1x M.2 NVMe SSD; The design has rich IO interfaces, with 2x LAN ports, 3x USB3.0, 3x USB2.0, 2*HDMI and 1x Audio ports; The power input is DC 12V voltage, and has over-current, over-voltage and reverse-polarity protection.

iSBX-TS1010-J6412A operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects. iSBX-TS1010-J6412A can be compatible with Windows10, Windows 11, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Specification

System
Processor
• Intel Elkhart Lake J6412, Quad-core 2.0Ghz processor, burst to 2.6Ghz
• TDP 10W
BIOS
• SPI AMI EEI BIOS
Memory
• SO-DIMM, DDR4-2666/2933/3200 Mhz, Max. up to 32GB
Storage
• 1x M.2 2280 M-Key slot (PCIe Gen-IV x4, NVMe) SSD
Graphic
• Intel Iris Xe Graphics (Up to 96EUs, 1.40Ghz)
Network
• 1x Intel i219V, 1x Intel i226V, optional support 3G/4G/5G/Wi-Fi/BT Wireless
Audio
• On-board Realtek ACL897 Audio controller
Expansion
• 1x M.2 3052 B-key slot (4G/5G), 1x M.2 2230 E-Key (Wi-Fi/BT)
TPM
• Intel® PTT TPM2.0
Watchdog
• 0~255 seconds programmable
Operating system
• Windows 10/11, Linux

IO Interface
COM
• No COM
Network
• 2x RJ45, 10/100/1000 Mbps
Audio
• 1x Mic-in/Line-out (2-in-1 Jack)
USB
• 6x USB3.0
Display
• 2x HDMI
Power Input
• DC Jack, lockable 5.5 * 2.5
GPIO
• Optional GPIO

Structure
Structure and surface
• Aluminium alloy, anodizing and anti-scratch treatment
Cooling System
• Finned aluminium heatsinks
Color
• Black
Indicator
• Power Switch/ Power LED/ HDD LED
Mounting
• Desktop, wall mount, optional with Din-rail mount
Dimension
• 168.4 x 110 x 45 (mm)
Net weight
• About 0.85 Kg

Mechanical & Environment

Voltage Input
• DC 12V
Power Consumption
• 20W
EMC
• CE/FCC/RoHS
Working temperature
• -20 ~ + 60 (℃)
Storage temperature
• -40 ~ + 70 (℃)
Relative humidity
• 10~95%@10℃（No condensation）
Vibration
• 50~500Hz,1.5G,0.15mm peak to peak
Shock
• 10G/Peak (11 ms)
