Server - SRW-680MZ73LM11200W

High-performance Dual AMD^® Processor based Server for AI and 3D/simulation workloads

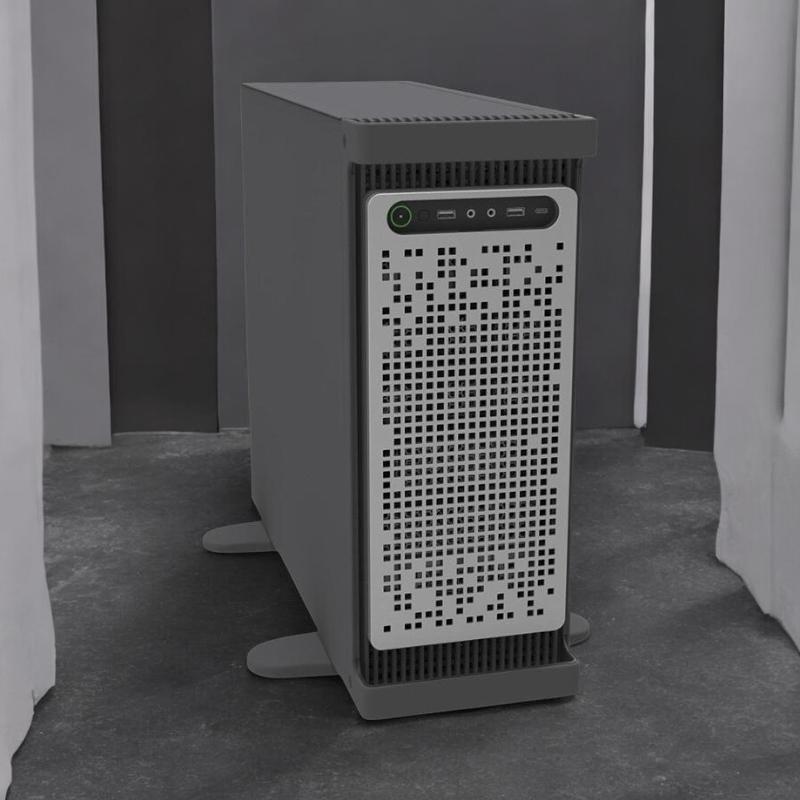

SRW-680MZ73LM11200W

Dual AMD EPYC™ 9005/9004 Series Processors for Tower/Rack Mount Server with Dual LAN/ 1 VGA/ 1 COM/ 4 USB Port/ 1200W Power Supply

Introduction Specification Ordering Information Datasheet

Introduction

The SRW-680MZ73LM11200W SINETIC Dual AMD Processor Server Platform leverages the powerful SP5 socket, which has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform shared by AMD EPYC™ 9004 and 8004 series processors is also used for the latest AMD EPYC™ 9005 series processors. With support for up to 192 cores, higher frequencies, and increased cache, this high-performance platform is designed for general-purpose computing, cloud-native workloads, and technical computing applications.

Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process technology with AMD “Zen 5” and “Zen 5c” core architecture, delivering improvements in performance, energy efficiency, and cost optimization. The SRW-680MZ73LM11200W SINETIC Dual AMD Processor Server Platform integrates this advanced architecture to provide scalable, high-performance infrastructure for enterprise, virtualization, AI workloads, and modern data center environments.

Specification

System
Processor
AMD EPYC™ 9005/9004 Series Processors
Dual processor, cTDP up to 400W
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s
AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Chipset
System on Chip
BIOS
• AMI 32MB SPI Flash EEPROM
Storage
•    SlimSAS:
- 2 x SlimSAS 8i for 4 x Gen4 NVMe or 16 x SATA, from CPU_1
- 1 x SlimSAS 4i for 4 x SATA, from CPU_0
•    M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0Graphic
Graphics controller & VGA support via ASPEED AST2600 BMC
USB
2 x USB 3.2 Gen1 ports (Type-A) (Rear)
2x USB 3.2 Gen1 (Header)
Network
2 x 10Gb/s LAN (1 x Broadcom® BCM57416) - Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Audio
•    Realtek ALC888S - HD Audio 7.1
Expansion
Slot_4: PCIe x16 (Gen4 x16), from CPU_0
Slot_3: PCIe x16 (Gen4 x16), from CPU_0
Slot_2: PCIe x16 (Gen4 x16), from CPU_1
Slot_1: PCIe x16 (Gen4 x16), from CPU_1
2 x SlimSAS 8i (PCIe Gen4 x8 or SATA), from CPU_1
TPM
•   1 x TPM header with SPI interface
Operating system
• Windows 10/11, Linux

IO Interface
COM
• 1x COM
Network
• 2x RJ45, 10/100/1000/10000 Mbps
Audio
•   -
USB
2x USB 3.2 Gen. 2x2 Port
Display
• 1x VGA
Power Input
• 1200W Power Supply
GPIO
• Nil

Structure
Structure and surface
• Aluminium alloy, anodizing and anti-scratch treatment
Cooling System
• Finned aluminium heatsinks
Color
• Black
Indicator
• Power Switch/ Power LED/ HDD LED
Mounting
• Desktop, wall mount, optional with Din-rail mount
Dimension
• 168.4 x 106.2 x 45 (mm)
Net weight
• About 0.8 Kg

Mechanical & Environment

EMC
• CE/FCC/RoHS
Operating Temperature
10°C to 40°C
Non-Operating Temperature
-40°C to 60°C
Operating Relative Humidity
8-80% (non-condensing)
Non-Operating Relative Humidity
20%-95% (non-condensing)

Ordering Information

SRW-680MZ73LM11200W
Dual AMD EPYC™ 9005/9004 Series Processors for Tower/Rack Mount Server with Dual LAN/ 1 VGA/ 1 COM/ 4 USB Port/ 1200W Power Supply
