Processor • LGA 1150 socket for: - 4th Generation Intel® Core™ processors (22nm process technology) : Intel® CoreTM i7-4770S (8M Cache, up to 3.9 GHz); 65W : Intel® CoreTM i5-4570S (6M Cache, up to 3.6 GHz); 65W : Intel® Core™ i3-4330 (3M Cache, 3.5 GHz); 54W : Intel® Pentium™ G3420 (3M Cache, 3.2 GHz); 54W BIOS • AMI BIOS - 64Mbit SPI BIOS System Memory • Two 240-pin DDR3/DDR3L DIMM sockets • Supports DDR3/DDR3L 1333/1600MHz • Supports dual channel memory interface • Supports up to 16GB system memory DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC Chipset • Intel® H81 Express Chipset Video • Intel® HD Graphics • Display ports: HDMI and DVI-I • DVI-I supports up to 1920x1200 @ 60Hz resolution • HDMI supports up to 4096x2304 @ 24Hz resolution or 2560x1600 @ 60Hz resolution • VGA display resolution up to 1920x1200 pixels with 24-bit color @ 60Hz • Supports 6 Graphics Execution Units (EUs) • Intel® Clear Video Technology • DirectX Video Acceleration (DXVA) support for accelerating video processing Ethernet • Intel® I210 PCI Express Gigabit Ethernet controller • Intel® I217LM with iAMT9.0 Gigabit Ethernet Phy • Integrated 10/100/1000 transceiver • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab On Board I/O • 1x Connector for PS/2 Mouse/Keyboard • 2 x Serial ports (2x RS-232/422/485 selectable ) • 2 SATA 3.0 ports with data transfer rate up to 6Gb/s • 2 SATA 2.0 ports with data transfer rate up to 3Gb/s • Integrated Advanced Host Controller Interface (AHCI) controller • 8 USB: 2 USB 3.0, 6 USB 2.0 ports • 1x 8 bit Digital I/O |
Watchdog Timer • Programmable watchdog timer for 1~255 seconds. CMOS • On-board RTC with 242 bytes of Battery-back CMOS RAM. Audio • Realtek® ALC886 5.1-channel High Definition Audio • Audio outputs: Mic-in/Center+Subwoofer, line-in/surround and line-out • S/PDIF audio interface Power • One 24pins power connector for system power. • One ATX-12V 8-pins connector for CPU power. • Support both AT and ATX mode. Cooling • One CPU cooling FAN connector nearby CPU socket Drive Bays 2x 5.25 Driver Bay (External) 2x 3.5" (Internal) Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH Mechnical Dimension(WxDxH): 483 x 462 x 88 mm Packing • N.W: 8.0KGS G.W:10.0KGS |
Ordering Information |

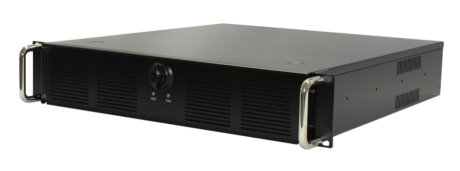

SYS-SR2000R2-M8495-AA-C0 Industrial 2U Rack Mount System based on Intel® 4th Generation Core™ i7-4770S Processor H81 Chipset with 8x USB/2x COM Ports/HDMI/DVI/Dual Gigabit LAN/16GB DDR3 RAM/1TB Harddisk 3.5"/ DVDRW Drive |
SYS-SR2000R2-M8495-BB-C0 Industrial 2U Rack Mount System based on Intel® 4th Generation Core™ i5-4570S Processor H81 Chipset with 8x USB/2x COM Ports/HDMI/DVI/Dual Gigabit LAN/16GB DDR3 RAM/1TB Harddisk 3.5"/ DVDRW Drive |
SYS-SR2000R2-M8495-CC-C0 Industrial 2U Rack Mount System based on Intel® 4th Generation Core™ i3-4330 Processor H81 Chipset with 8x USB/2x COM Ports/HDMI/DVI/Dual Gigabit LAN/16GB DDR3 RAM/1TB Harddisk 3.5"/ DVDRW Drive |
SYS-SR2000R2-M8495-DD-C0 Industrial 2U Rack Mount System based on Intel® 4th Generation Core™ Pentium G3420 Processor H81 Chipset with 8x USB/2x COM Ports/HDMI/DVI/Dual Gigabit LAN/8GB DDR3 RAM/1TB Harddisk 3.5"/ DVDRW Drive |
Optional |
Riser-321 2x PCI + 1x PCIex16 riser card |
Riser-320 3x PCI riser card |
TC-400P Industrial 400W Auto Raging Power Supply |
TC-500PA Industrial 500W Auto Raging Power Supply |
TC-600PF Industrial 600W Auto Raging Power Supply |
